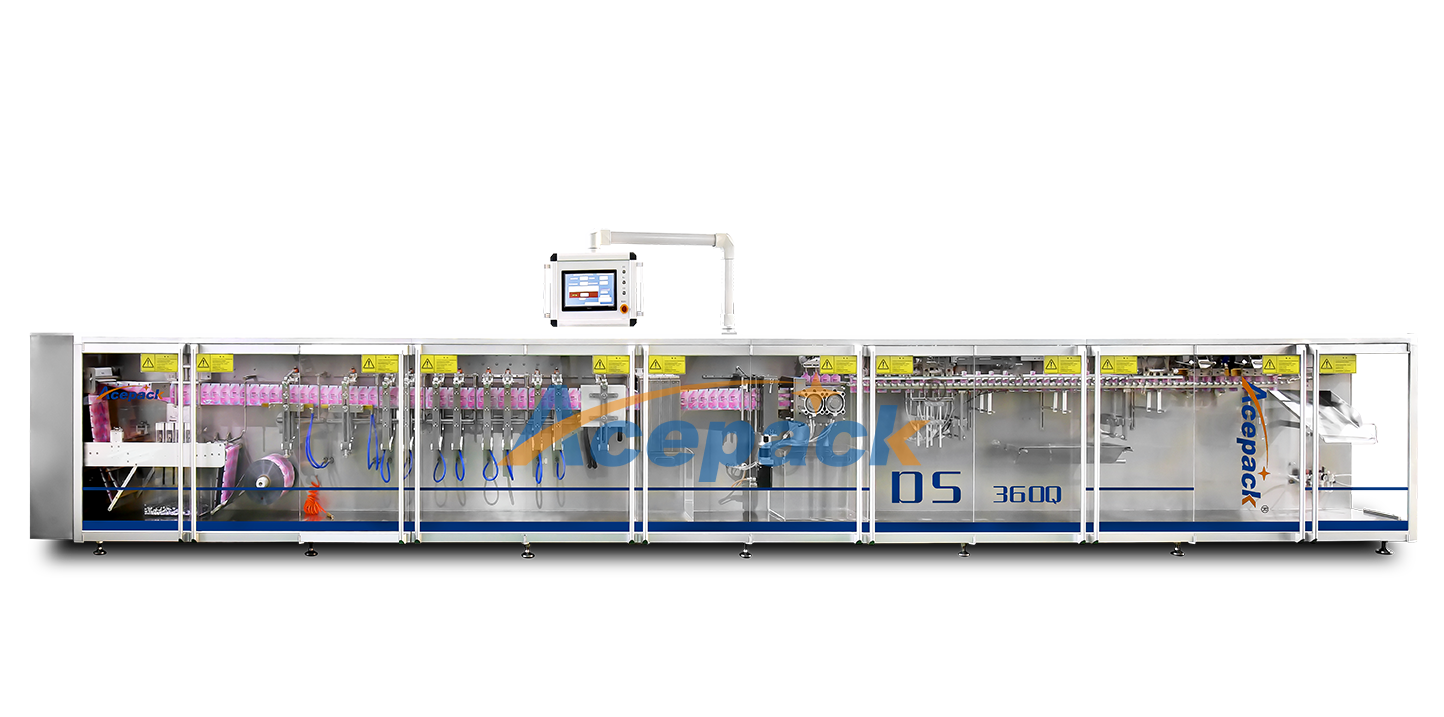

Special-Shaped doypack packing machine

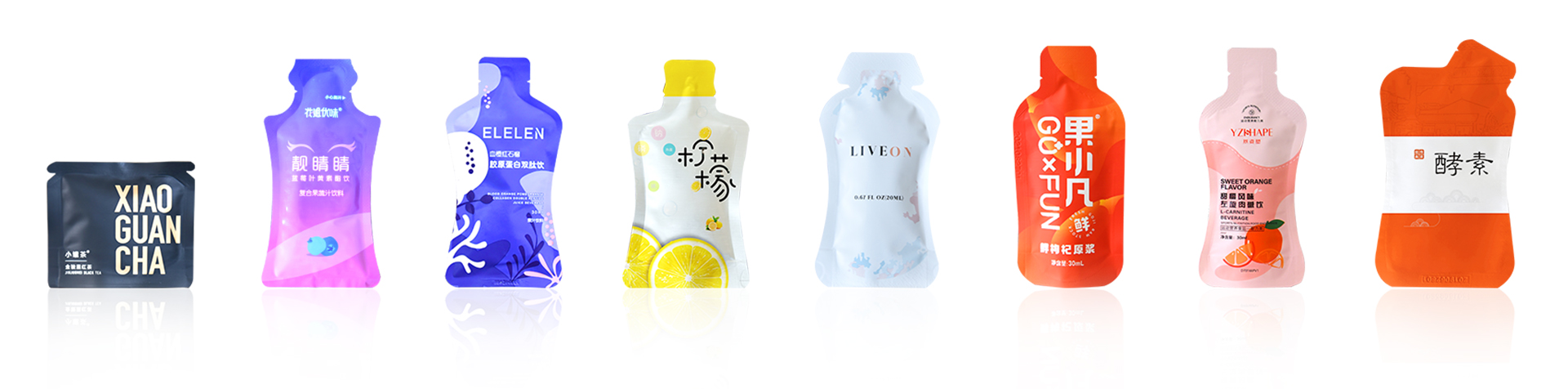

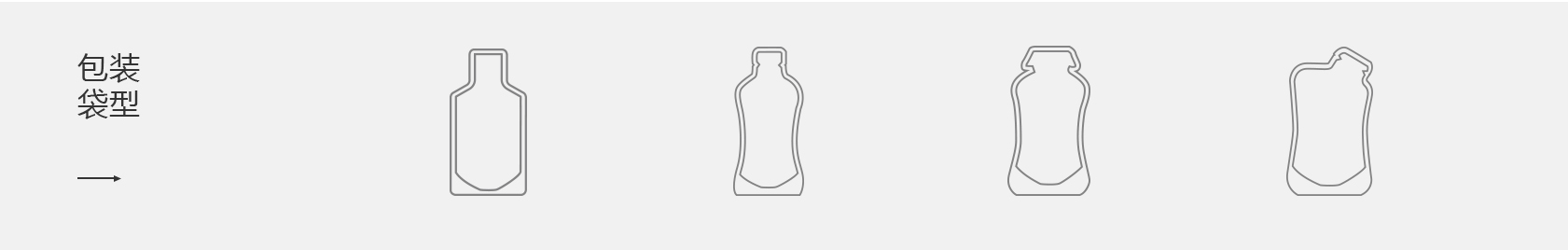

Main application market: functional customized and convenient packaging related to big health drinks such as oral hyaluronic acid, collagen peptides, and concentrated puree. The shape of the outer bag can achieve customized needs, enhance product highlights, and increase the added value of products.
The equipment adopts roll film bag making, cooperates with cooling system to realize burr-free punching forming (improves product bag shape aesthetics), is compatible with high temperature filling, CIP automatic cleaning support function; and adopts international first-line brand configuration to realize servo drive and control, product It has the characteristics of high degree of automation, stable operation, large compatibility of packaging materials, and high aesthetics.
Product parameters
Model | DS-360Q(B) | DS-180DS(B) |
DS-140S(B) |
Maximum Packing Volume | 150ml | 150ml |
300ml |
Max Pouch Size | 90mm*180mm | 90mm*180mm |
140mm*200mm |
Min Pouch Size | 60mm*100mm | 60mm*100mm |
60mm*90mm |
Packing Speed | 160-200ppm | 80-120ppm |
40-60ppm |
Air Consumption | 800NL/min | 600NL/min |
500NL/min |
Input Power | 17kw | 8.3kw |
6.5Kw |
Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz |
Equipment Weight | 6000kg | 2200kg | 1600kg |
L*W*H | 9800*1050*1400mm | 5630*970*1400mm | 4480*970*1400mm |

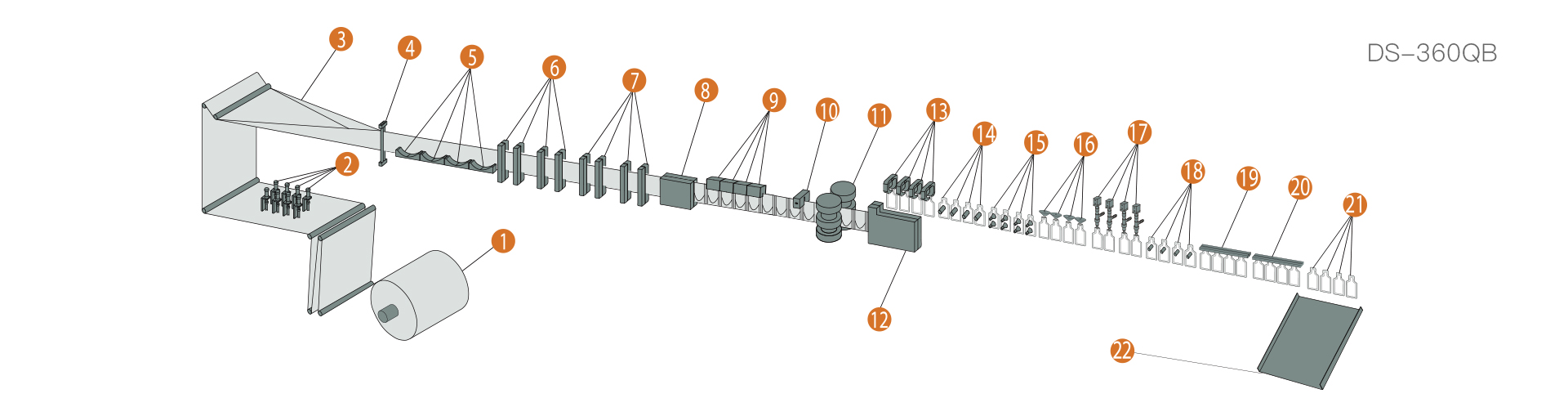

(1) Film Unwind | (6)Vertical Seal I |
(11)Servo Advance |
(16)Air Flushing | (21)Finished Product |
(2) Bottom Hole Punching | (7)Vertical Seal II |
(12)Form Punching |
(17)Filling | (22)Output |
(3) Pouch Forming | (8)Vertical Cooling |
(13)Pouch Mechanism |
(18)Pouch Stretching | |
(4) Film Guide | (9)Flanging |
(14)Pouch Sorting |
(19)Heat Sealing | |
(5)Bottom Seal | (10)Photocell |
(15)Pouch Opening |
(20)Cool Sealing |
