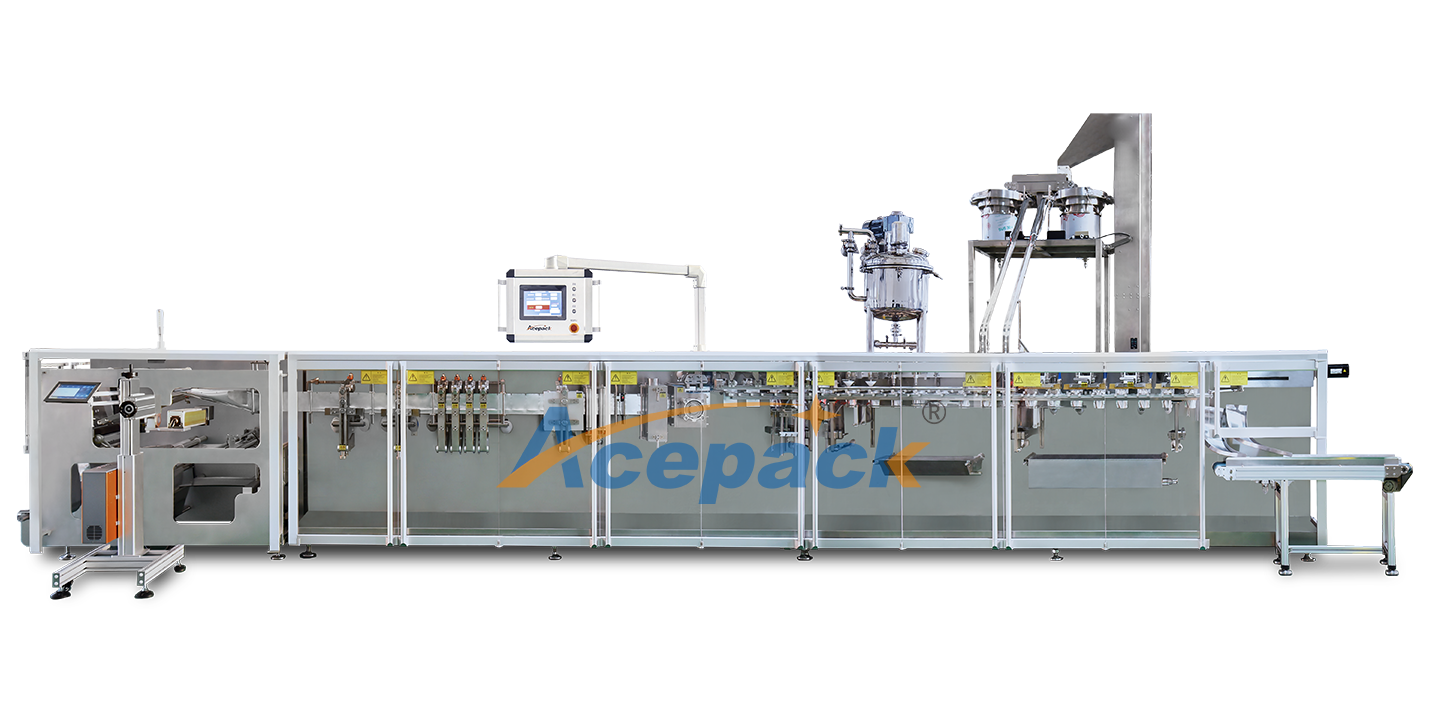

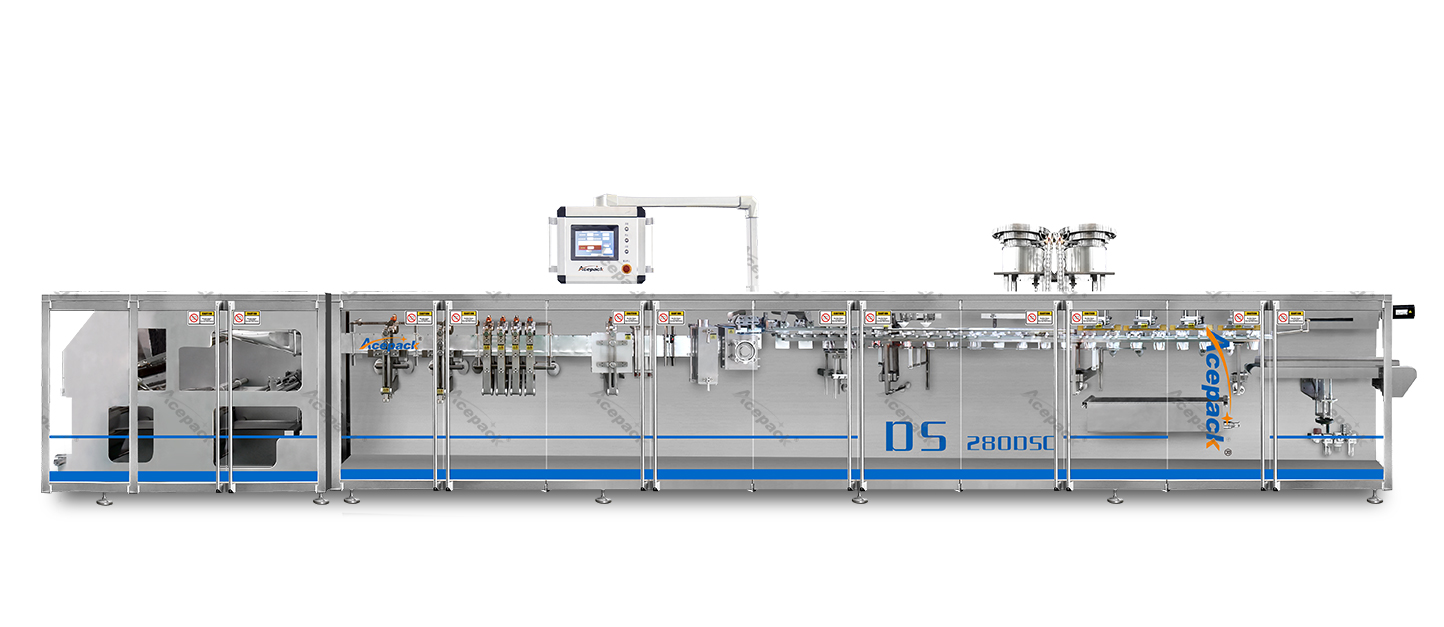

Top spout Stand-up Pouch filling machine

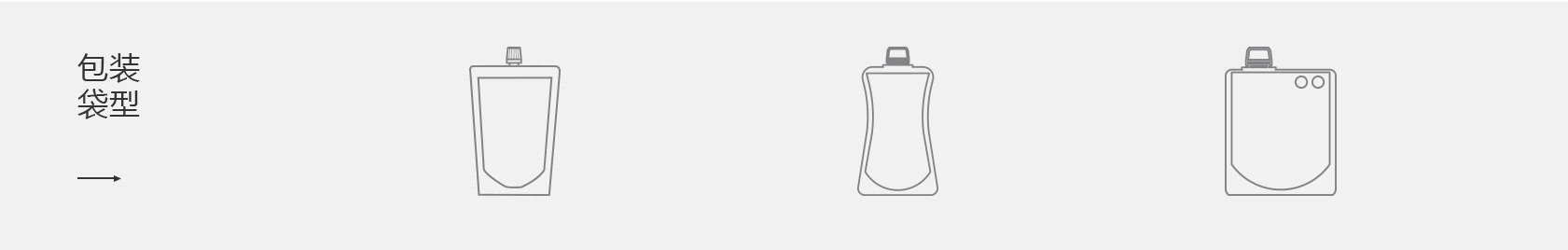

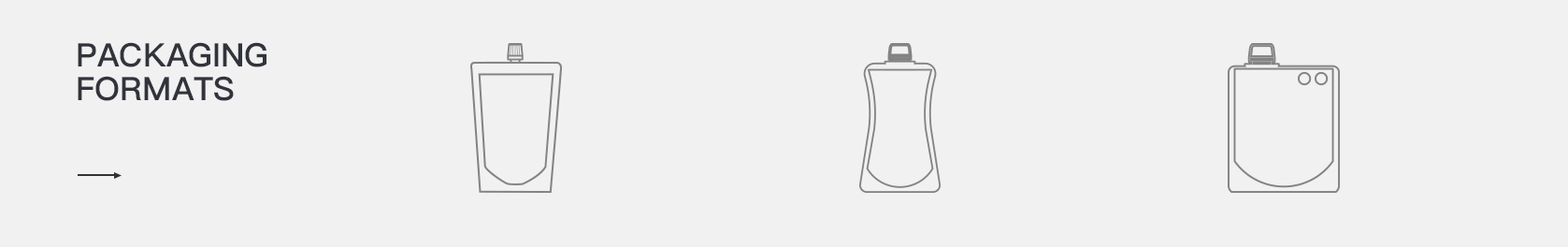

      This Top spout Stand-up Pouch filling machine is specially designed for the needs of top spout doy bag, and has flexible functional applications, such as adding hanging holes, special shapes, zippers, top spout and other functions, which are widely used in salt, lubricating oil, beverages, juices , yogurt, ketchup, sauce, edible oil, cleaning series and other filling types. The nozzle bag packaging machine is often used to package liquid materials such as juice, beverage, detergent, milk, soy milk, soy sauce and so on.


Product parameters





ModelDS-140SC
DS-180SC
DS-280DSC
Maximum Packing Volume300ml 1000ml
800ml
Max Pouch Size140mm*200mm 160mm*260mm

140mm*260mm

Min Pouch Size60mm*90mm 90mm*110mm
90mm*110mm
Packing Speed40-60ppm 40-60ppm
80-120ppm
Air Consumption250NL/min 600NL/min
800NL/min

Input Power

7.4kw 8kw
11.5Kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz AC 380V 50Hz
Equipment Weight1600kg 2200kg 4350kg
L*W*H4480*970*1400mm 5550*1100*1400mm 9400*1500*1800mm

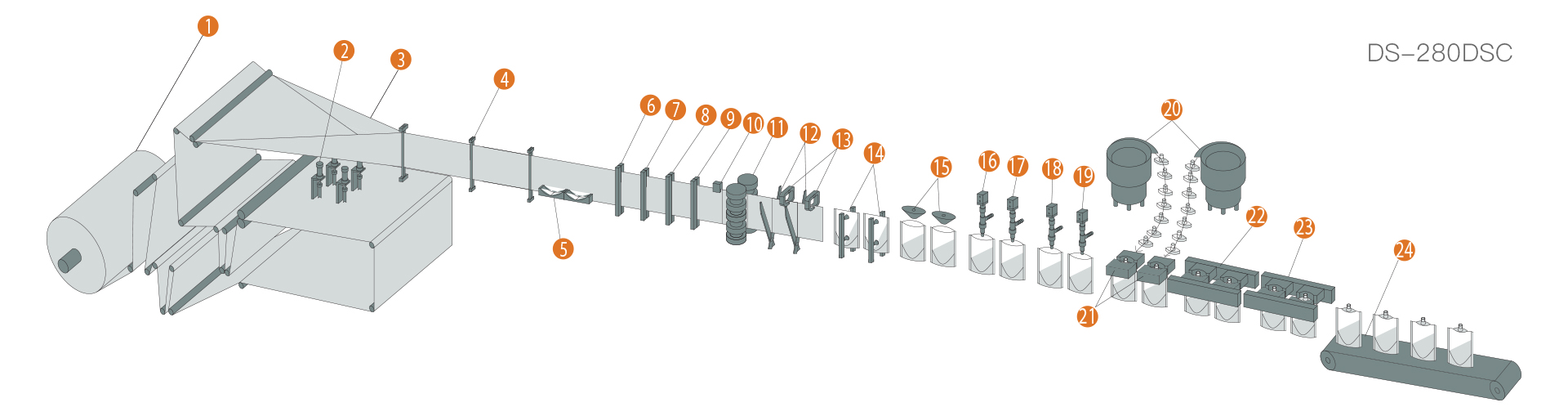

Process flow diagram




(1) Film Unwind(6)Vertical Seal I
(11)Servo Advance
(16)Filling I
(21)Duplex Spout Inserting
(2) Bottom Hole Punching
(7)Vertical Seal II
(12)Duplex Cutting
(17)Filling II
(22)Heat Sealing
(3) Pouch Forming(8)Vertical Cooling I
(13)Duplex Pouch Catching

(18)Filling III

(23)Cool Sealing
(4) Film Guide(9)Vertical Cooling II
(14)Duplex Pouch Opening
(19)Filling IV
(24)Output
(5)Bottom Seal(10)Photocell
(15)Duplex Air Flushing
(20)Duplex Vibrator

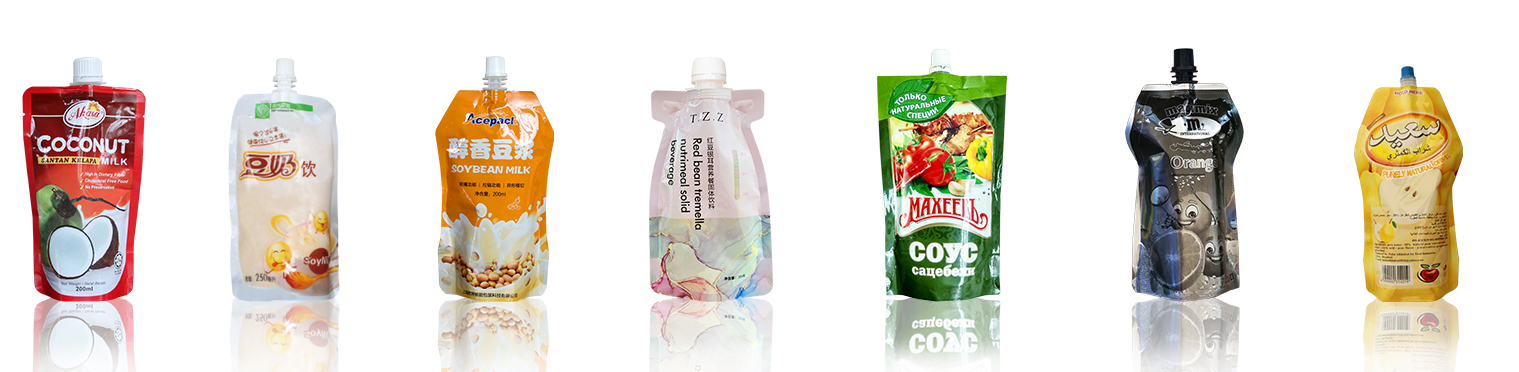

Some customer samples
