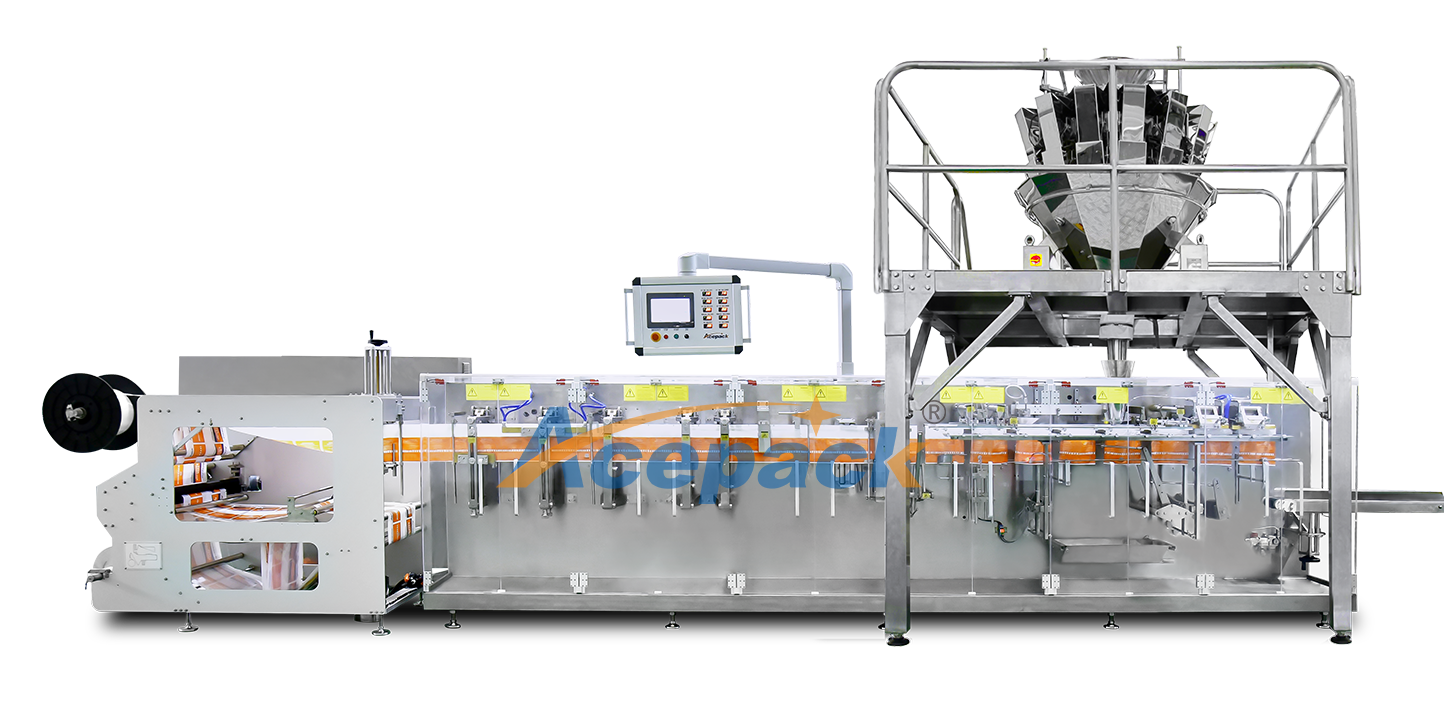

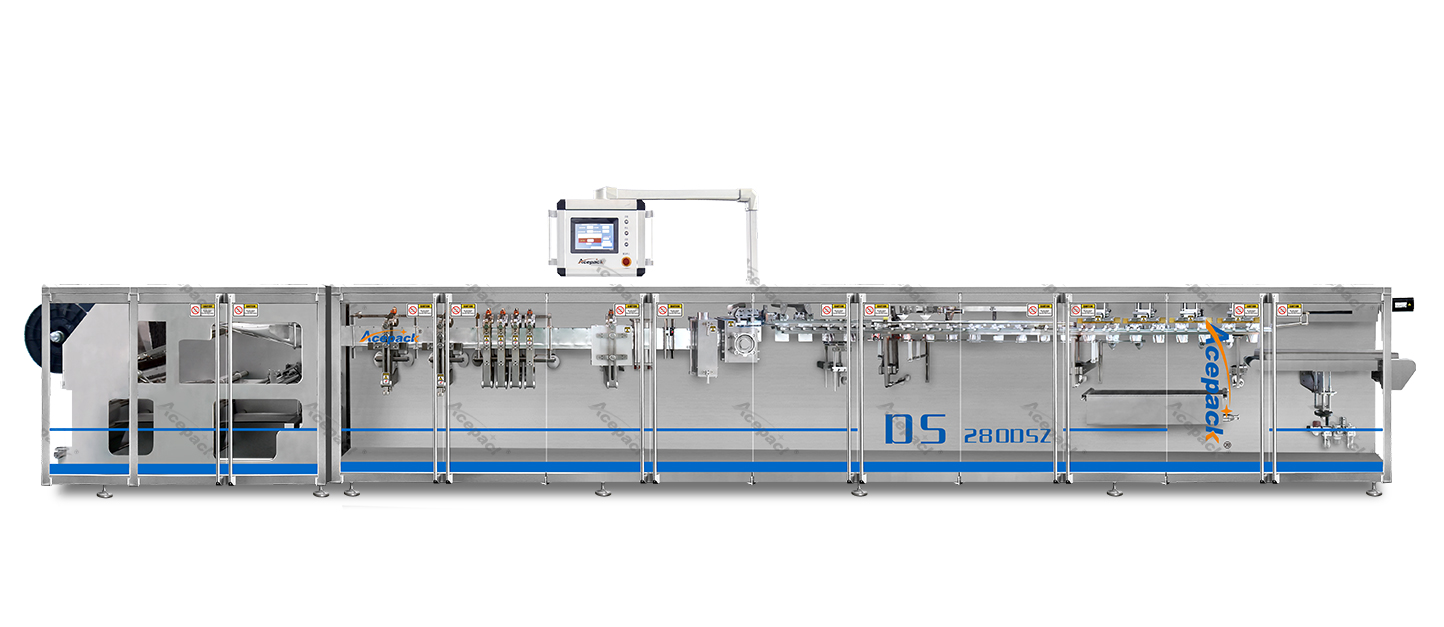

Zipper doypack Pouch Packaging Machine



       This Zipper doypack Pouch Packaging Machine is specially designed for the packaging of stand-up pouches with zipper sealing. The equipment is flexible and multi-purpose, which can effectively solve the application of finished bags from small size to large size, and can be widely used in powder, granule and other material packaging.

The packaging material of the zipper stand-up pouch packaging machine is composite material.






Product parameters



ModelDS-140SZ
DS-180SZ
DS-240SZ
DS-280DSZ
Maximum Packing Volume300ml 1200ml
2000ml 800ml
Max Pouch Size140mm*200mm 180mm*260mm

240mm*350mm

140mm*260mm
Min Pouch Size60mm*90mm 90mm*110mm
100mm*120mm 90mm*110mm
Packing Speed40-60ppm 40-60ppm
30-60ppm 80-120ppm
Air Consumption200NL/min 200NL/min
300NL/min 700NL/min

Input Power

8kw 8.3kw
10kw 12kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz AC 380V 50Hz AC 380V 50Hz
Equipment Weight1800kg 2300kg 2800kg 4100kg
L*W*H4780*970*1400mm 6970*1100*1400mm 7500*1250*1400mm 7800*1100*1400mm

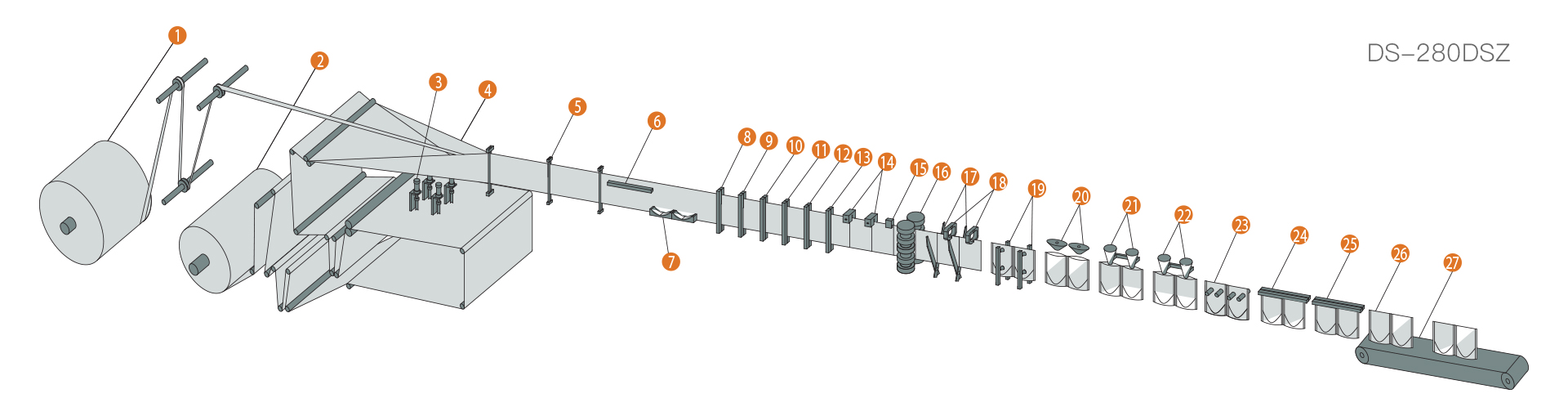

Process flow diagram




(1) Zipper Mechannism(7) Bottom Seal
(13)Vertical Cooling II
(19)Duplex Pouch Opening
(25)Top Seal II
(2) Film Unwind
(8) Vertical I
(14)Tear Notch
(20)Air Flushing
(26)Finished Product
(3) Bottom Hole Punching(9) Vertical II
(15)Photocell

(21)Filling I

(27)Outlet
(4) Pouch Forming(10)Vertical III
(16)Servo Advannce
(22)Filling II

(5) Film Guide(11)Vertical IV
(17)Cutting
(23)Pouch Stretching

(6) Zipper Sealing
(12)Vertical Cooling I
(18)Pouch Catching
(24)Top Seal I

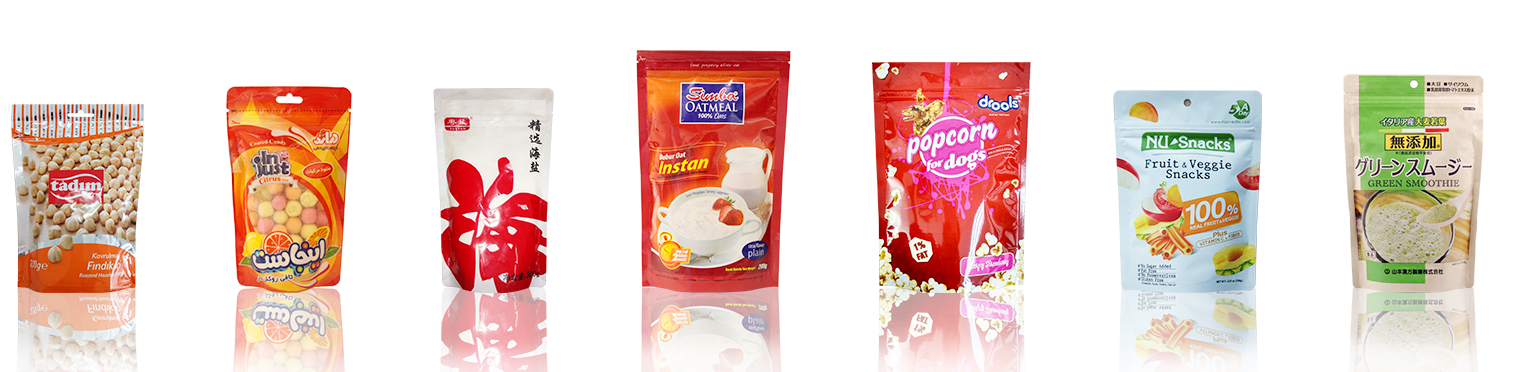

Some customer samples
