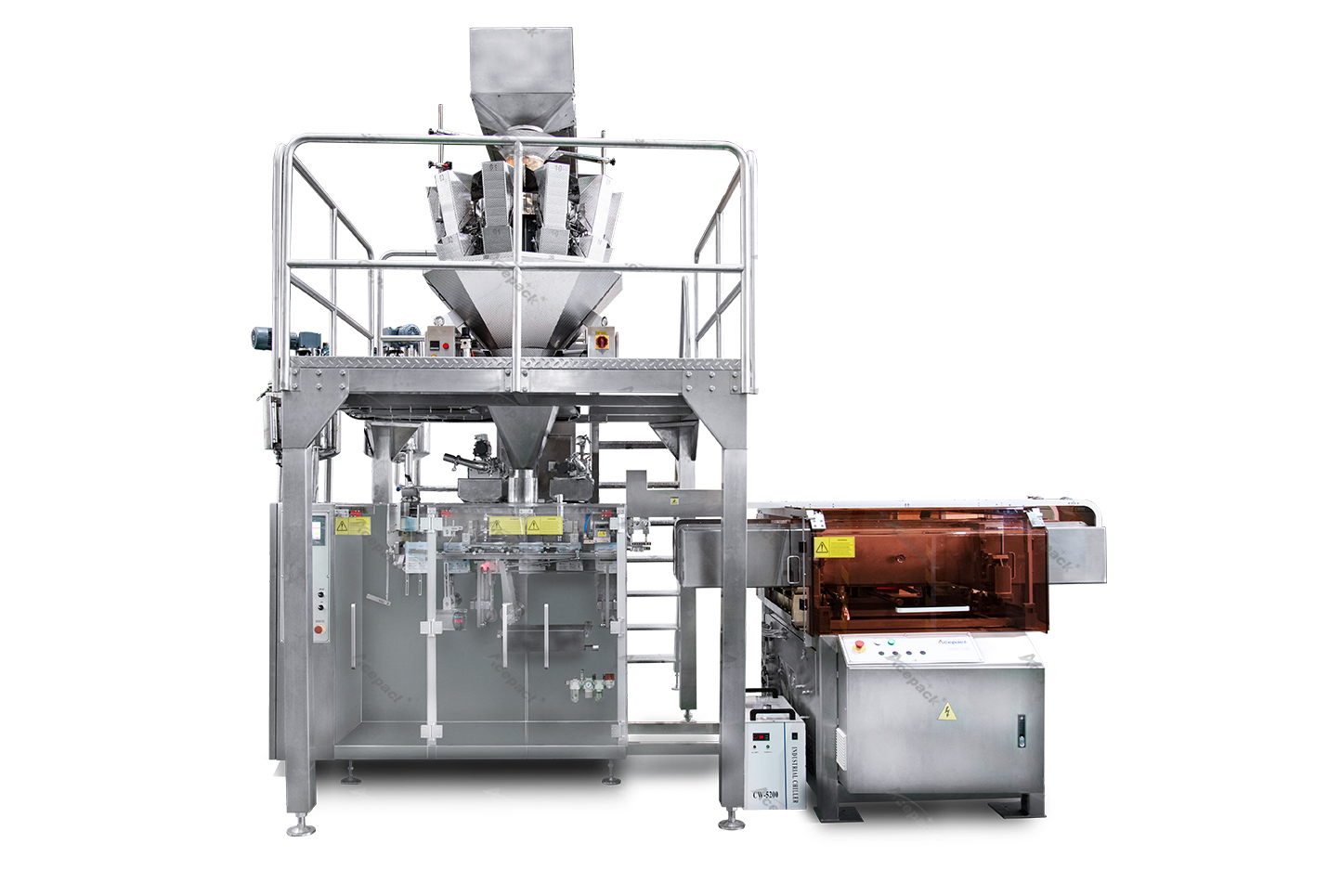

Vacuum Packing Machine



       The horizontal vacuum packaging model is suitable for various heat-sealing multi-layer composite films. It is specially designed for the vacuum packaging requirements of food and other products. It can automatically complete the bag forming, making, dosing, filling and vacuum sealing processes, It is the ideal packaging solution for vacuum packaging.


Product parameters




ModelVBS-180 VBS-180D VBSG-180VBSG-180D
Maximum Packing Volume400ml 100ml
500ml 100ml
Max Pouch Size180mm*200mm 90mm*180mm

180mm*200mm

90mm*180mm
Min Pouch Size60mm*80mm 50mm*80mm
60mm*80mm 60mm*80mm
Packing Speed40-60ppm 100-140ppm
40-60ppm 100-120ppm
Air Consumption400NL/min 400NL/min
400NL/min 400NL/min

Input Power

11.5kw 11.5kw
8.8Kw 8.8Kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz AC 380V 50Hz AC 380V 50Hz
Equipment Weight2000kg 2100kg 1300kg 1300kg
L*W*H5650*970*1500mm 5650*970*1500mm 4140*970*1390mm 4140*970*1390mm

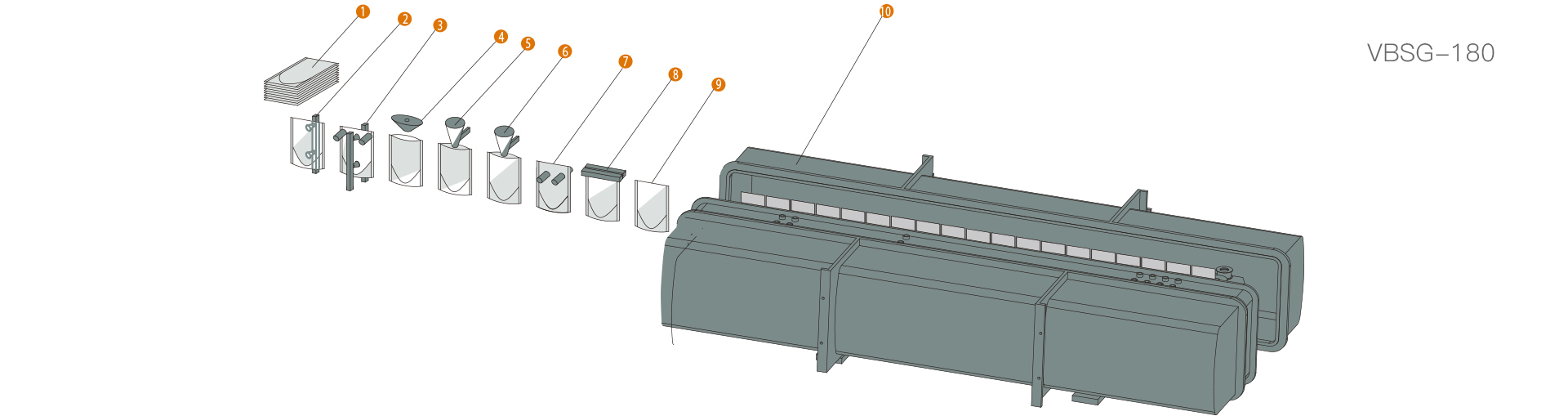

Process flow diagram




(1) Premade Pouch Stack(2)Filp-Out Pouch-Picking Unit
(3)Pouch Opening
(4)Air Flushing
(5)Filling I
(6) Filling II
(7)Pouch Stretching
(8)Heat Sealing
(9)Finished Product
(10)Vacuum Pump
Some customer samples
