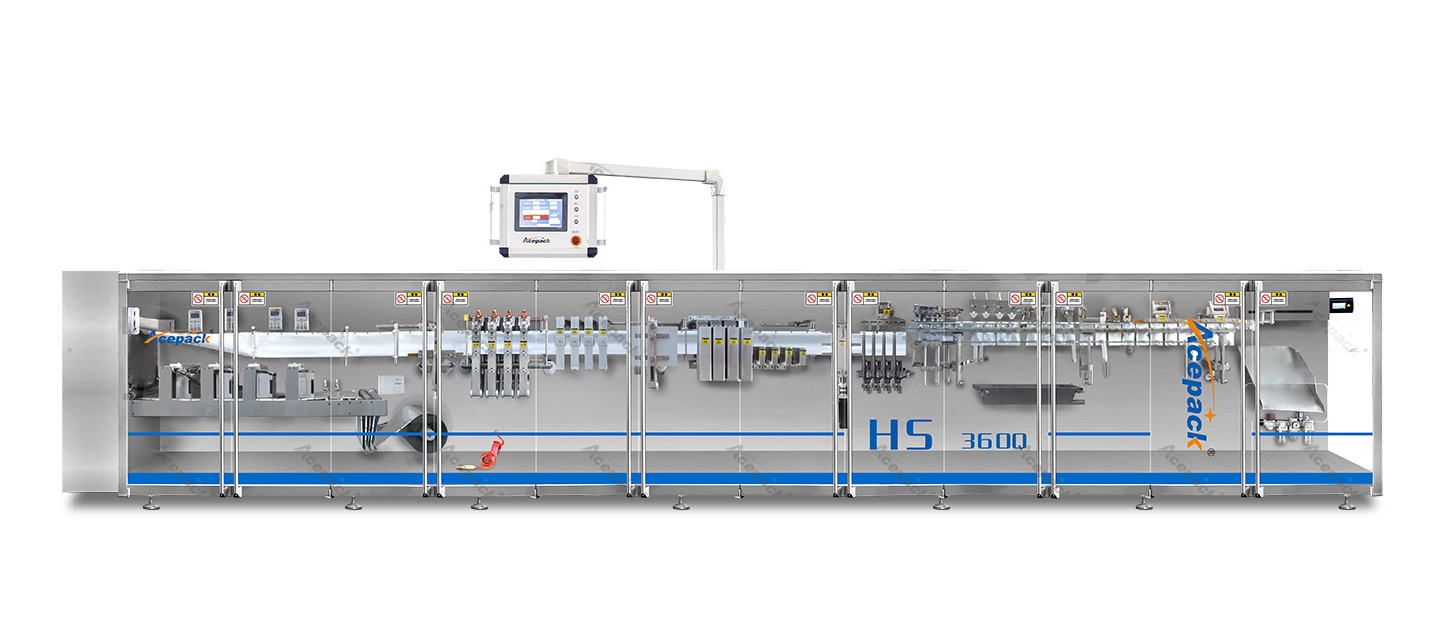

High Speed ​​Flat Pouch Packaging Machine(Swifty bagger



       The horizontal high-speed packaging model can be adapted to various heat-sealing multi-layer composite films. The machine produces multiple bags at a time, adopts a newly designed multi-bagging mechanism, and is a multi-functional model integrating bag making, measuring and filling. The ideal packaging solution for packaging.


Product parameters




ModelHS-360Q
Maximum Packing Volume100ml
Max Pouch Size90mm*180mm
Min Pouch Size60mm*90mm
Packing Speed200-320ppm
Air Consumption400NL/min

Input Power

11.5kw
Working Power SupplyAC 380V 50Hz
Equipment Weight3000kg
L*W*H6440*970*1290mm
Process flow diagram




(1) Film Unwind(5) Vertical Seal
(9)Cutting
(13)Filling II
(17)Output
(2) Pouch Forming
(6)Tear Notch
(10)Pouch Mechanism
(14)Pouch Stretching

(3) Film Guide(7)Photocell
(11)Pouch Opening

(15)Heat Sealing


(4) Bottom Seal(8)Servo Advance
(12)Filling I
(16)Finished Product

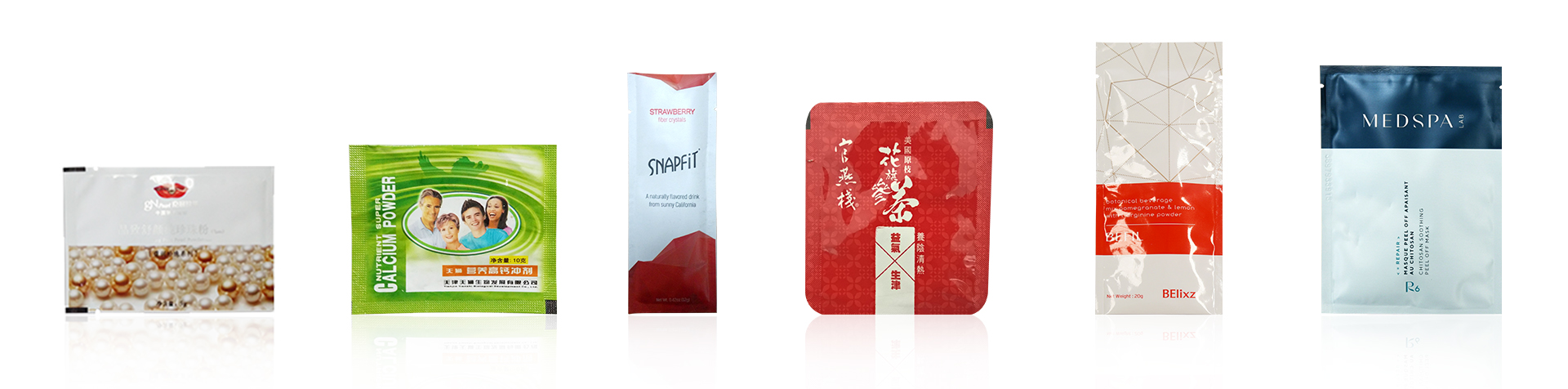

Some customer samples
