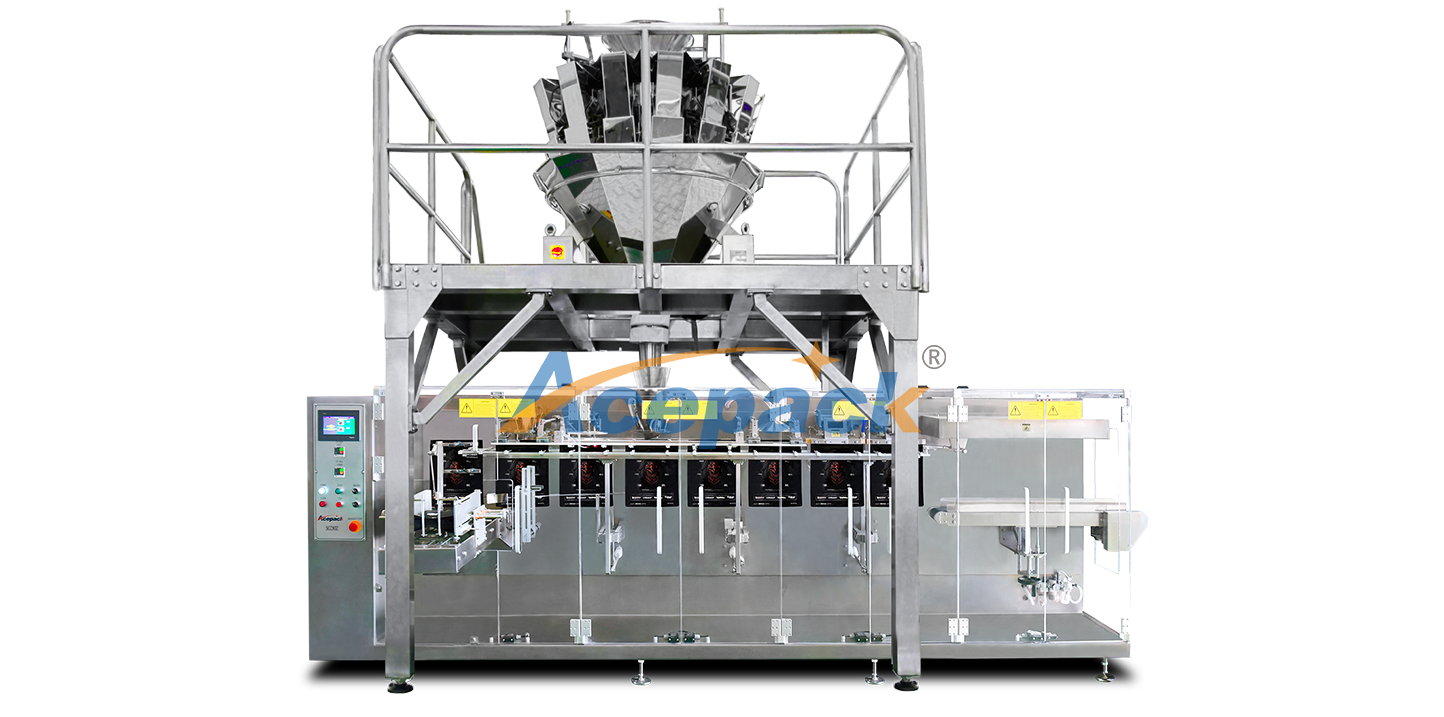

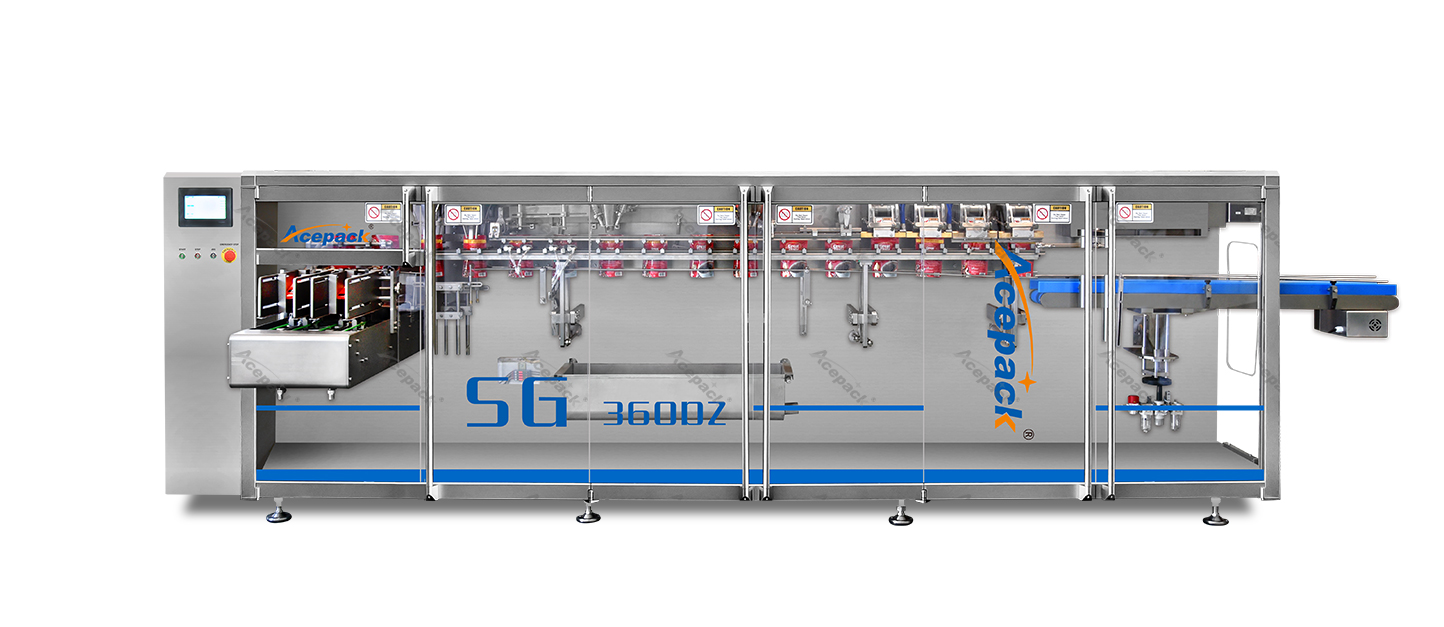

Zipper Premade Pouch Packing Machine

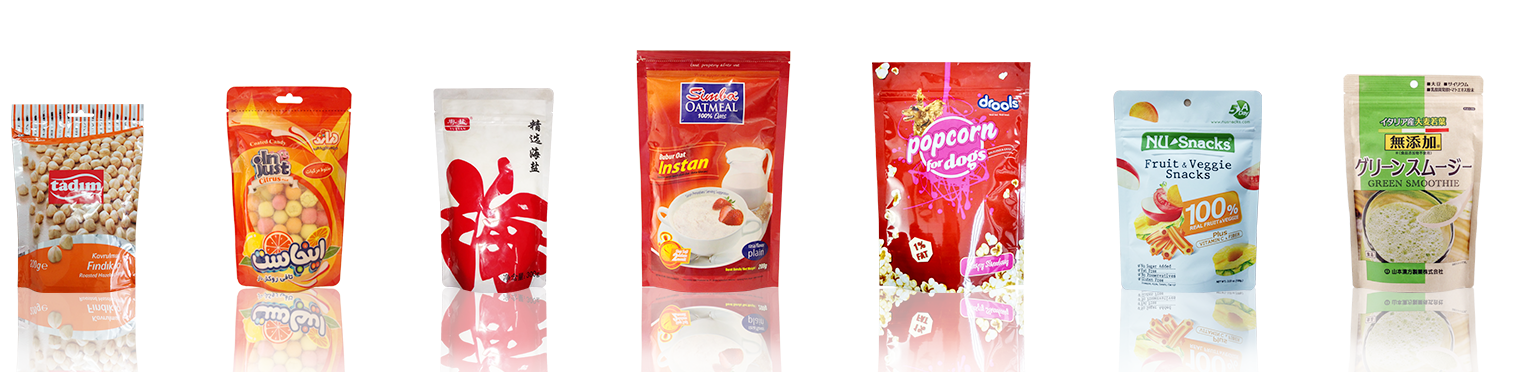

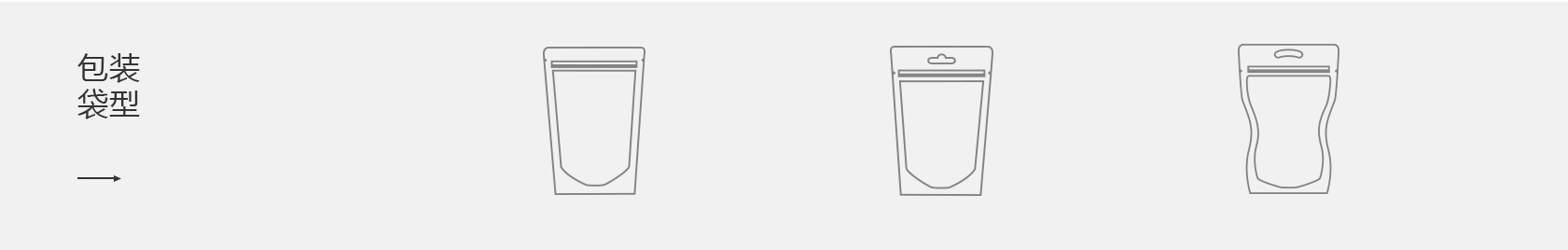

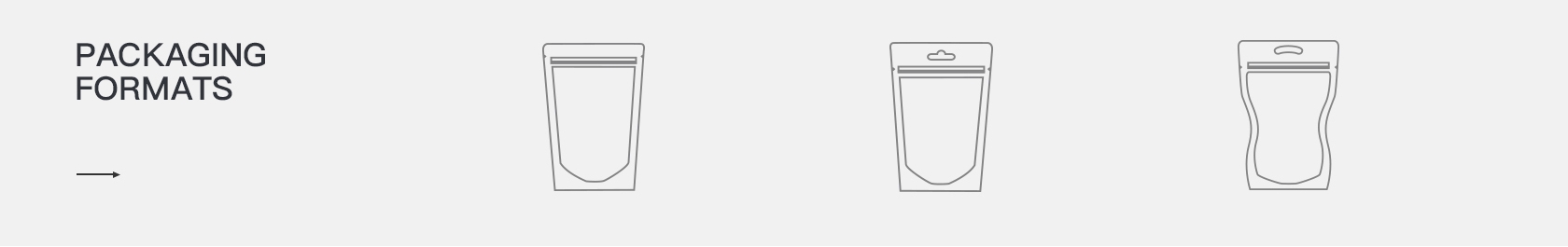

This series is specially designed for the needs of stand-up pouches with straight suction nozzles, and has flexible functional applications, such as adding hanging holes, special shapes, zippers, suction nozzles and other functions, which are widely used in salt, lubricants, beverages, juice, yogurt, sauce , edible oil, washing series and other packaging types.
Product parameters
| Model | SG-180Z | SG-210Z | SG-240Z | SG-280Z | SG-320Z |
| Maximum Packing Volume | 1200ml | 1600ml | 2000ml | 3000ml | 4000ml |
| Max Pouch Size | 180mm*310mm | 210mm*310mm | 240mm*350mm | 280mm*400mm | 320mm*410mm |
| Min Pouch Size | 60mm*80mm | 90mm*110mm | 90mm*120mm | 90mm*120mm | 140mm*180mm |
| Packing Speed | 30-60ppm | 30-60ppm | 30-60ppm | 30-60ppm | 5-15ppm |
| Air Consumption | 200NL/min | 250NL/min | 450NL/min | 450NL/min | 350NL/min |
|
Input Power | 1.8kw | 2.8kw | 3.4kw | 6.5kw | 2.5kw |
| Working Power Supply | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
| Equipment Weight | 700kg | 1000kg | 1140kg | 2000kg | 700kg |
| L*W*H | 1990*970*1390mm | 2700*970*1400mm | 3100*1010*1400mm | 4100*1020*1500mm | 1800*1020*1300mm |
| （1） Pouch Feeding Converyor | （2）Filp-Out Pouch-picking |
（3）Zipper Opening |
（4）Pouch Opening | （5）Air Flushing |
| （6） Filling I | （7）Filling II |
（8）Pouch Stretching |
（9）Heat Sealing | （10）Cool Sealing |
| （11） Finished Product | （12）Servo Conveyor Output |
