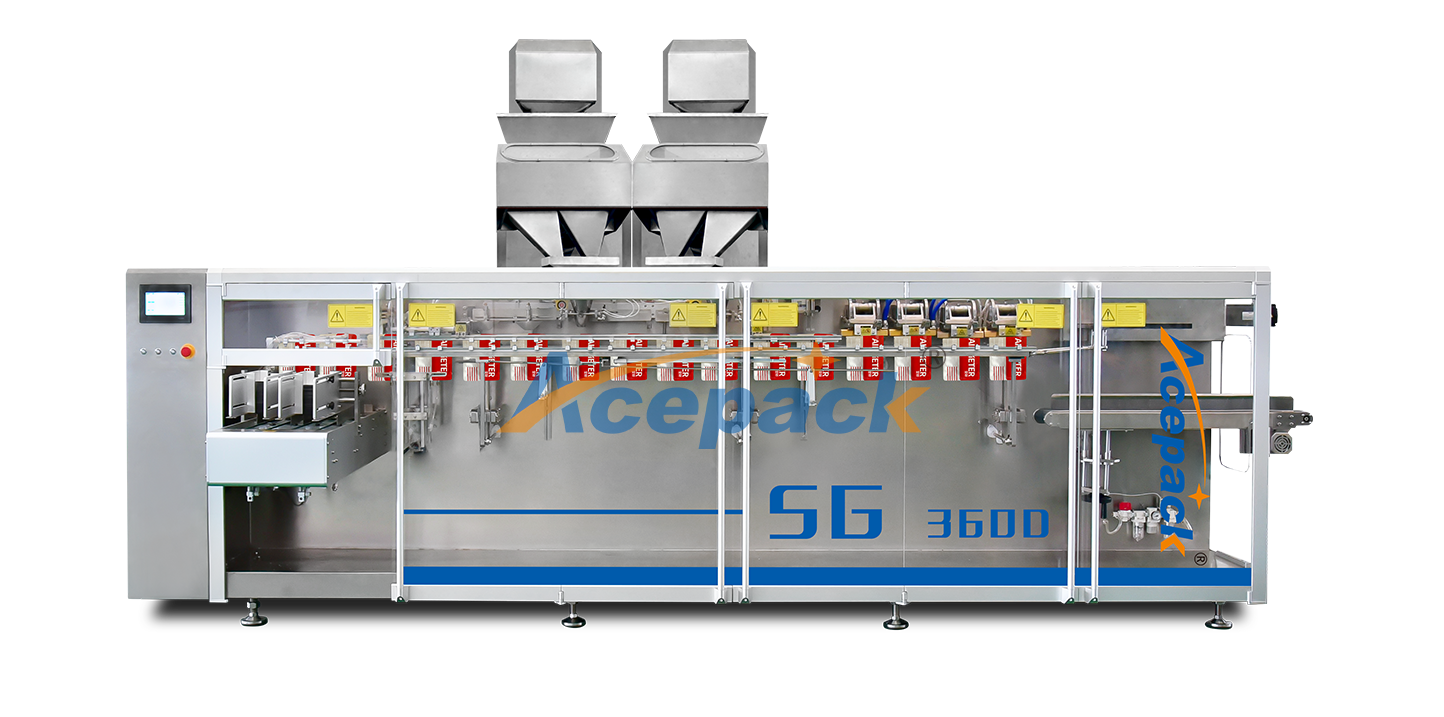

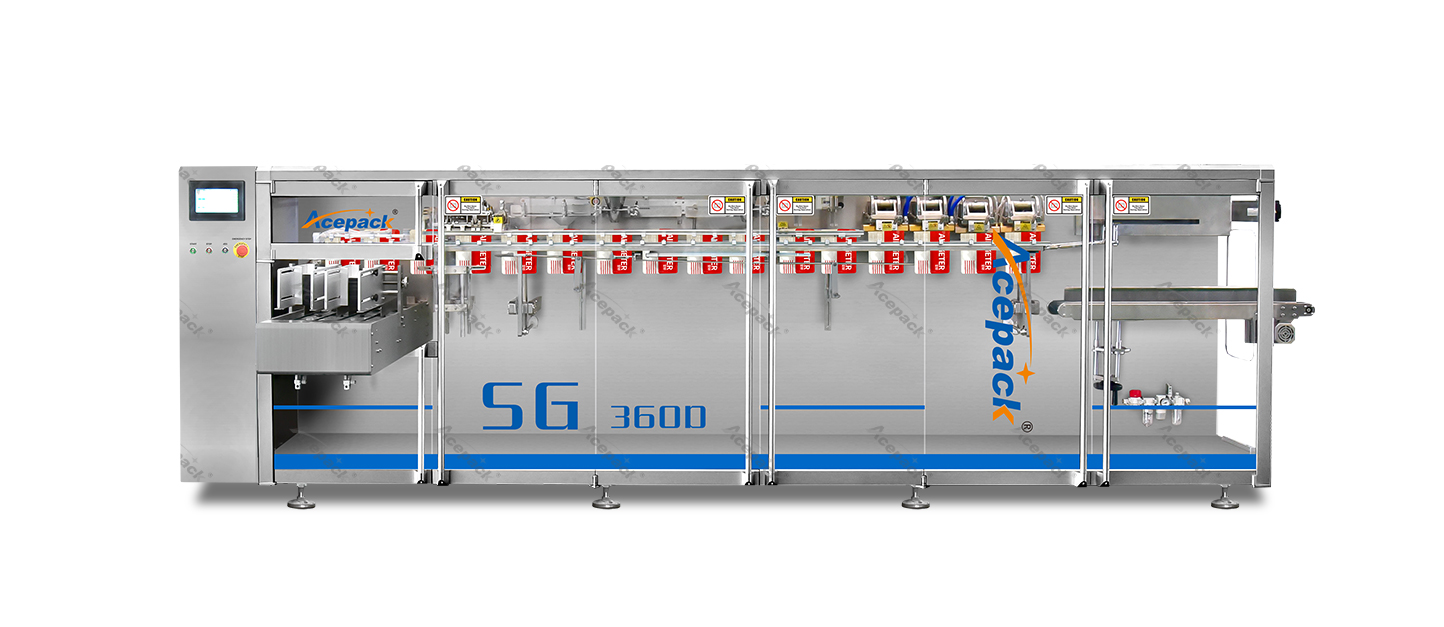

Standard Premade stand up pouch packaging machine

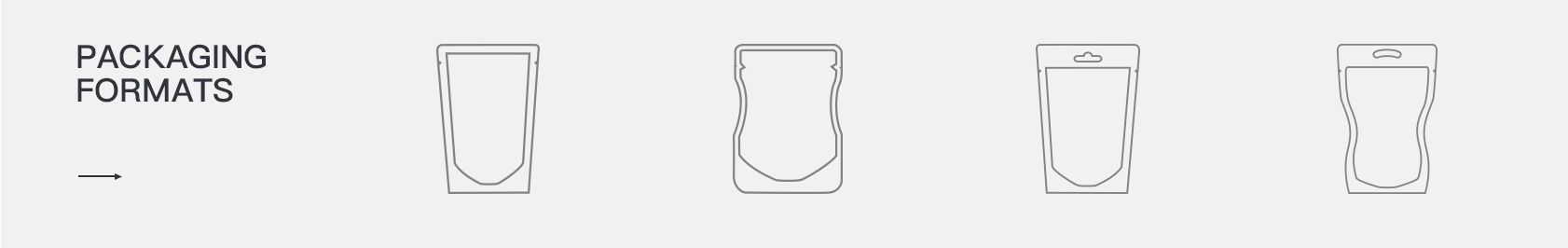

      Standard Premade stand up pouch packaging machine has flexible functional applications, such as adding hanging holes, special shapes, zippers, spout etc., and is widely used in salt, lubricating oil, beverages (health drinks, such as wolfberry puree, sea buckthorn puree, collagen peptide, etc.), fruit juice, Packaging types such as yogurt, sauces, edible oils, and washing and care series. Premade stand up pouch packaging machine can also be used for inner and outer bag packaging, or bag-type packaging for small bags into large bags. The packaging material can be selected from aluminum foil bags or composite films.


Product parameters




ModelSG-180 SG-210
SG-240
SG-280SG-360D
Maximum Packing Volume1200ml 1600ml
2000ml

3000ml

1200ml
Max Pouch Size180mm*310mm 210mm*310mm

240mm*350mm

280mm*400mm
180mm*310mm
Min Pouch Size60mm*80mm 90mm*110mm
90mm*120mm 90mm*120mm
90mm*110mm
Packing Speed30-60ppm 30-60ppm
30-60ppm 30-60ppm
60-120ppm
Air Consumption200NL/min 200NL/min
400NL/min 400NL/min
500NL/min

Input Power

1.8kw 2.8kw
3.4kw 5.5kw
4.5kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz AC 380V 50Hz AC 380V 50Hz
AC 380V 50Hz
Equipment Weight700kg 900kg 1040kg 1800kg
2000kg
L*W*H1990*970*1390mm 2700*970*1400mm 3100*1010*1400mm 4100*1020*1500mm
4055*980*1400mm

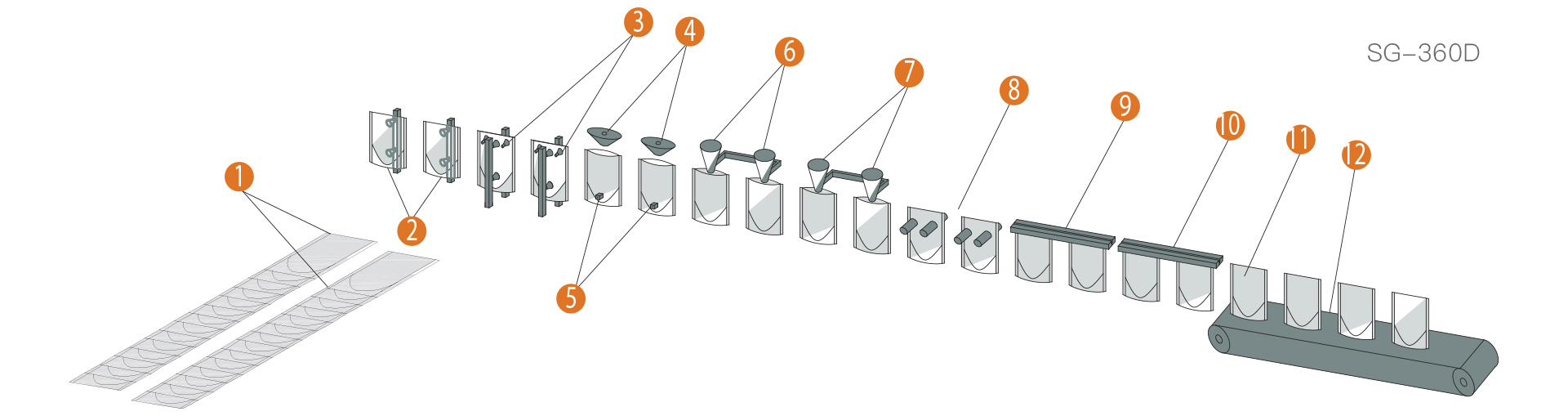

Process flow diagram




(1) Pouch Feeding Conveyor(2)Filp-Out Pouch-Picking
(3)Pouch Opening
(4)Air Flushing
(5)Photocell
(6) Filling I
(7)Filling II
(8)Pouch Stretching
(9)Heat Sealing
(10)Cool Sealing
(11)Finished Product(12)Outlet



Some customer samples
