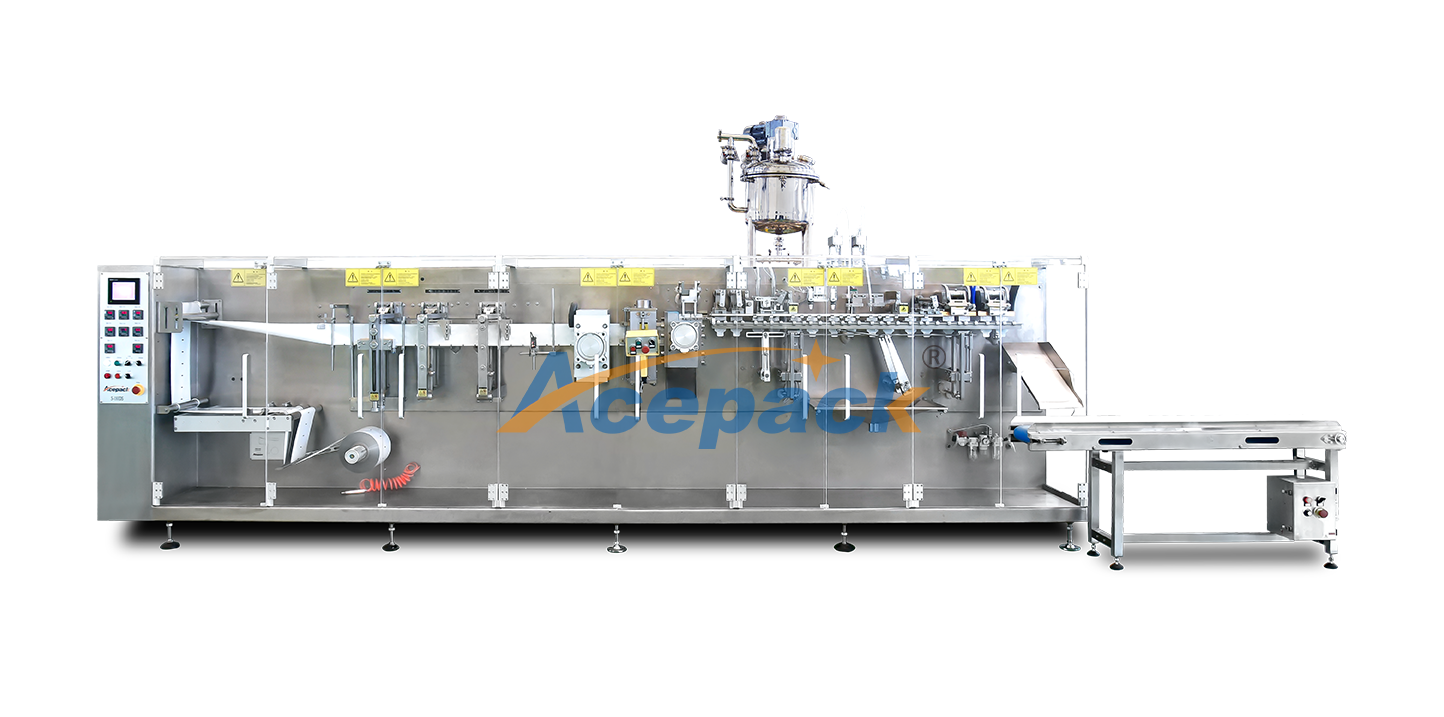

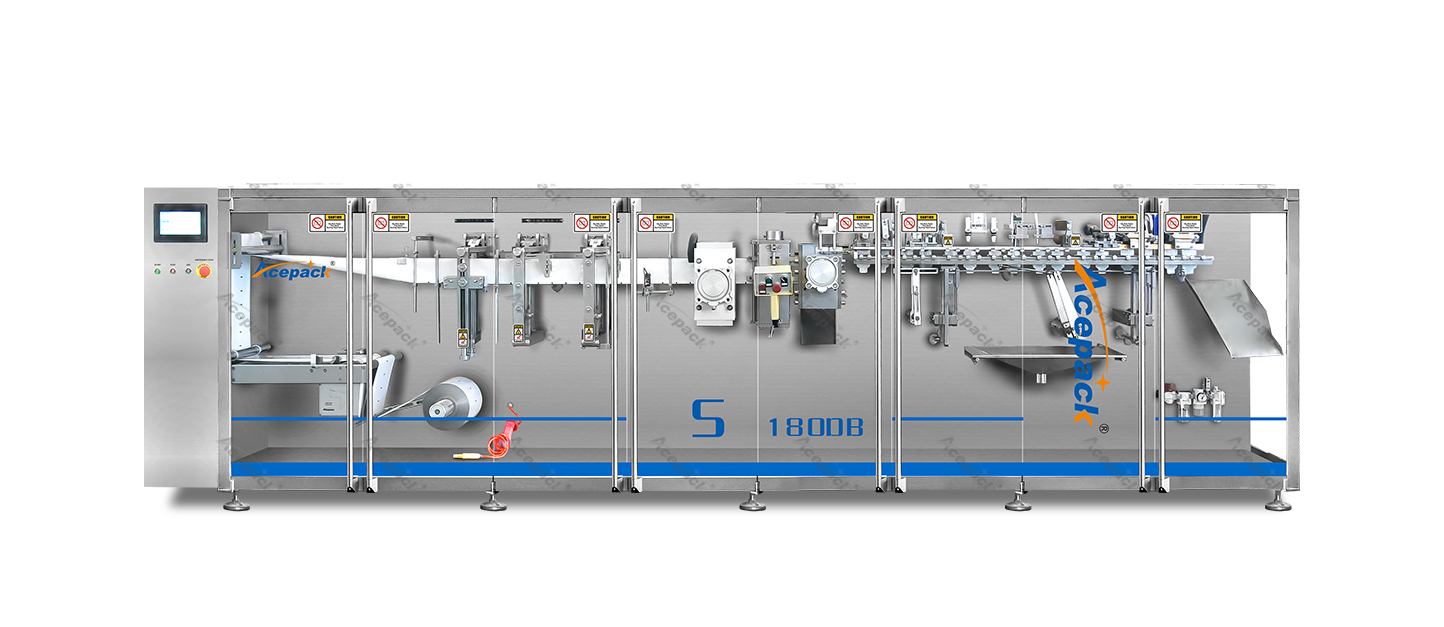

Shaped Flat Sachet Packaging Filling Machine



       The special-shaped sachet bag packaging Filling machine is a basic model designed for the special-shaped packaging of small bags. The packaging effect is beautiful and the equipment is flexible. It is widely used in packaging types such as enzymes, fruit and vegetable drinks, bird's nest direct drinks, functional drinks, puree, lactic acid bacteria, and collagen liquid.


Product parameters




ModelS-130B S-180DB
Maximum Packing Volume260ml 150ml
Max Pouch Size140mm*220mm 90mm*180mm
Min Pouch Size50mm*80mm 60mm*100mm
Packing Speed40-80ppm 80-120ppm
Air Consumption300NL/min 300NL/min

Input Power

3.5kw 8.3kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz
Equipment Weight1000kg 2200kg
L*W*H2990*970*1500mm 5330*970*1400mm

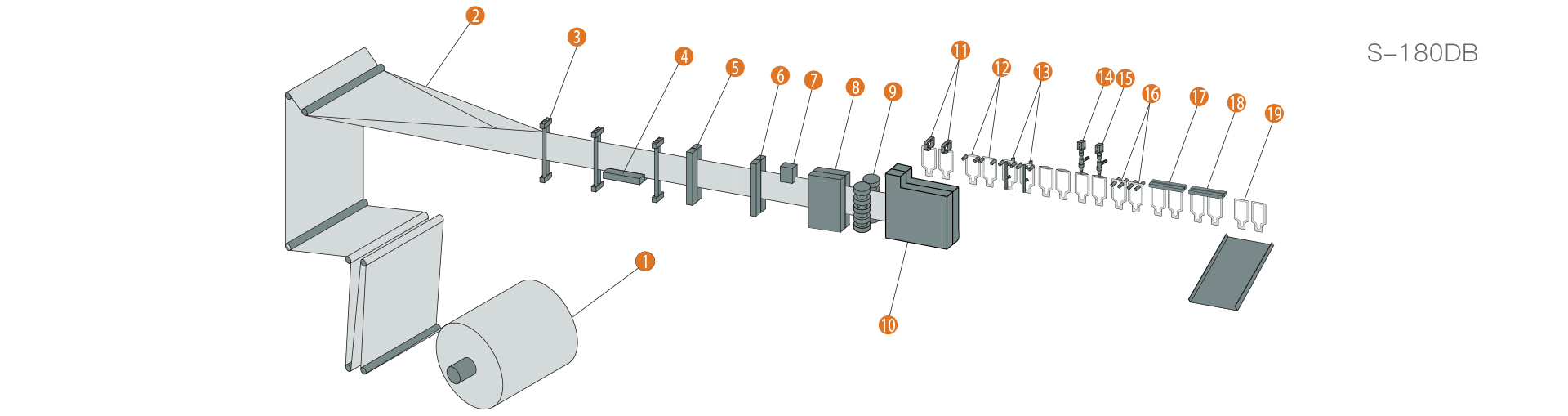

Process flow diagram




(1) Film Unwind(5) Vertical Seal
(9) Servo Advance
(13)Pouch Opening
(17)Heat Sealing
(2) Pouch Forming
(6) Vertical Cooling
(10)Form Punching
(14)Filling I
(18)Cool Sealing
(3) Film Guide(7) Photocell
(11)Pouch Mechanism

(15)Filling II

(19)Finished Product
(4) Bottom Seal(8) Flanging
(12)Pouch Sorting
(16)Pouch Stretching

Some customer samples
