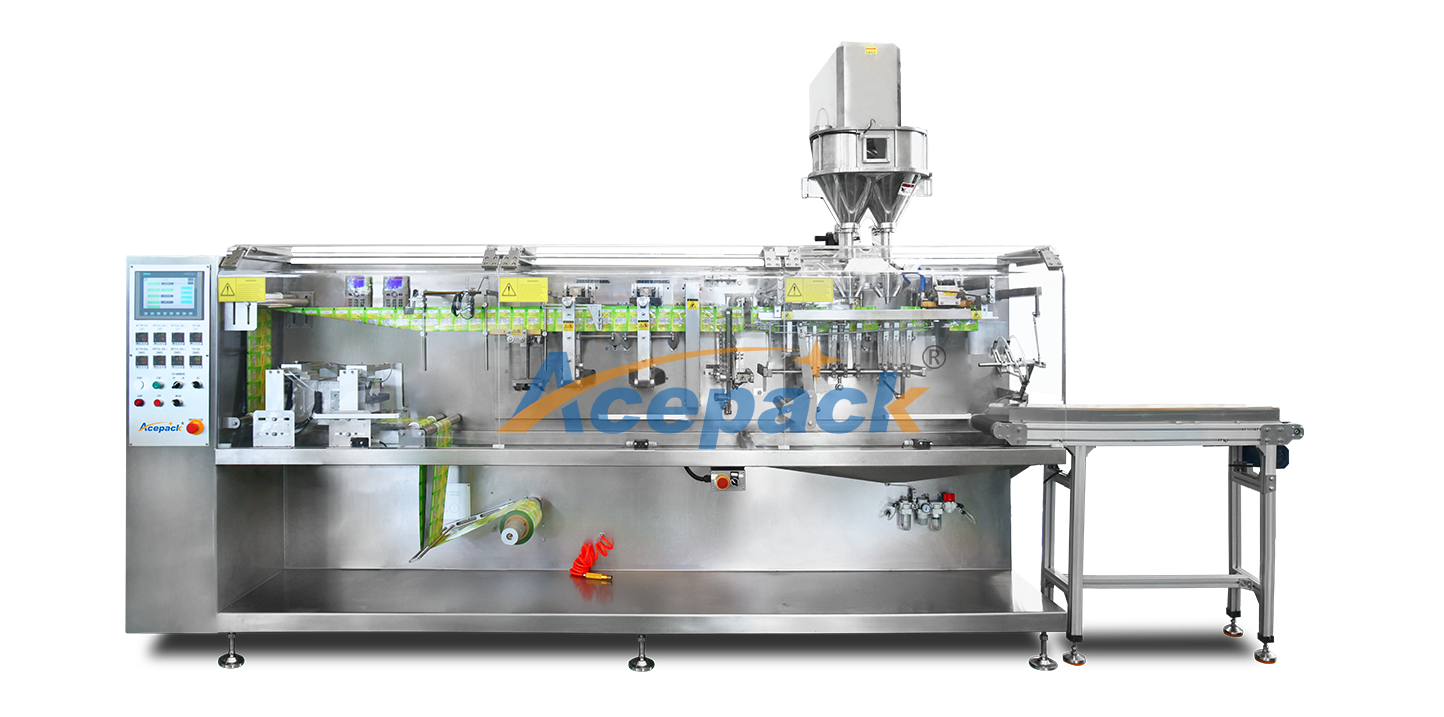

Twin-sachet Pouch Packing Machine


      The Twin- Link Pouch Packing Machine has a simple mechanical design and is an economical solution to realize small bags packaging.


Product parameters




Model: S-110T


Maximum Filling Capacity:60ML



Pouch Size:

110mm*120mm(Max.); 50mm*50mm(Min)


Packing Speed: 40-80ppm;


Air Consumption:100NL/min


Working Power Supply: AC 380V 50Hz, 2.5KW


Machine Dimensions and Weight:

2200*750*1400mm; 700KG

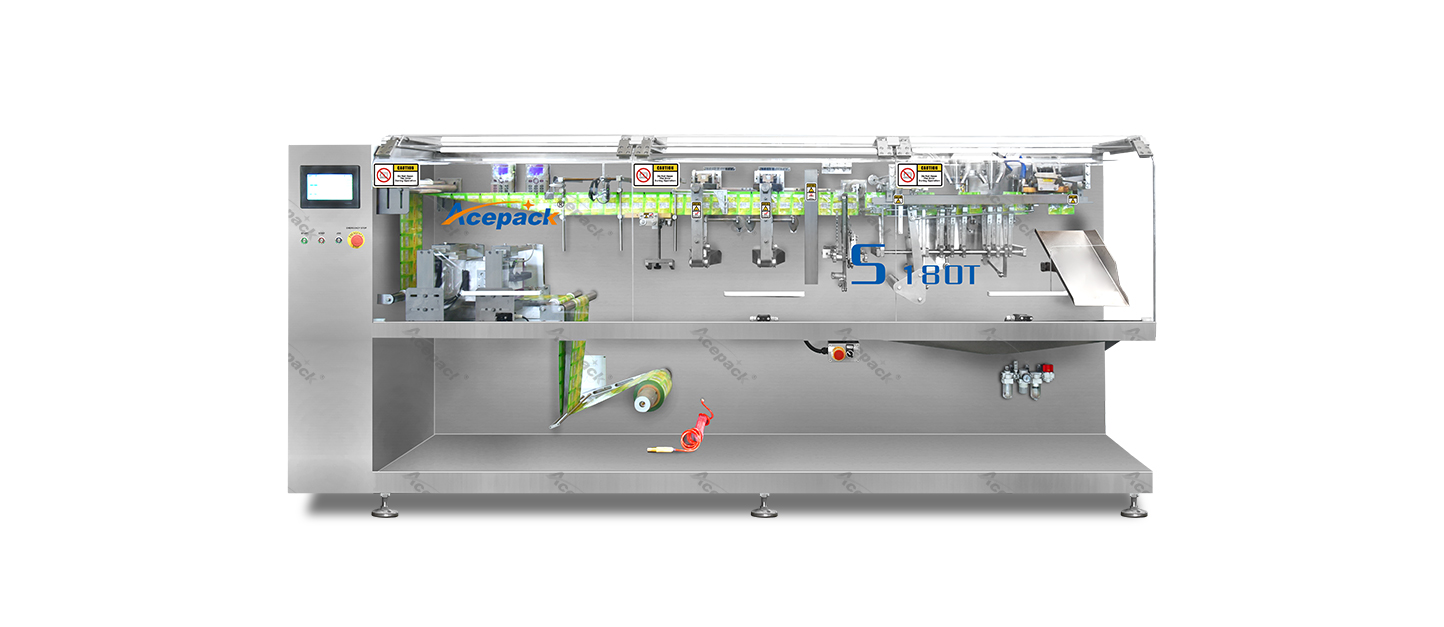

Model: S-180T


Maximum Filling Capacity:100ML



Pouch Size:

90mm*180mm(Max.); 50mm*180mm(Min)


Packing Speed: 100-160ppm;


Air Consumption:200NL/min


Working Power Supply: AC 380V 50Hz, 4.5KW


Machine Dimensions and Weight:

3500*970*1500mm; 1160KG

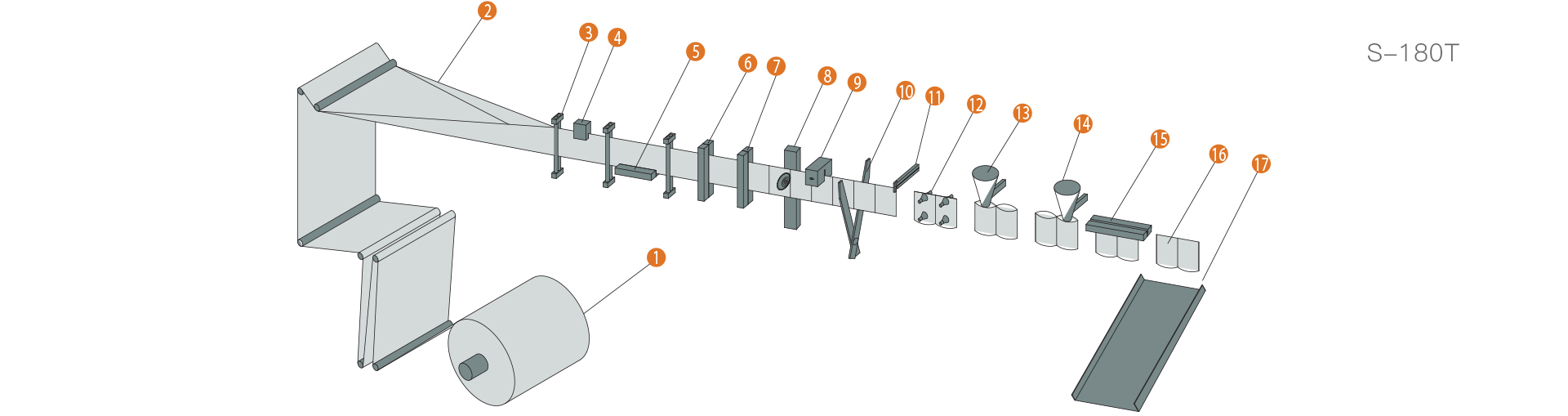

Process flow diagram




(1) Film Unwind(5)Bottom Seal
(9)Tear Notch
(13)Filling I
(17)Output
(2) Pouch Forming
(6)Vertical Seal
(10)Cutting
(14)Filling II

(3) Film Guide(7)Vertical Cooling
(11)Pouch Pulling

(15)Heat Sealing


(4) Photocell(8)Virtual Knife Device
(12)Pouch Opening
(16)Finished Product

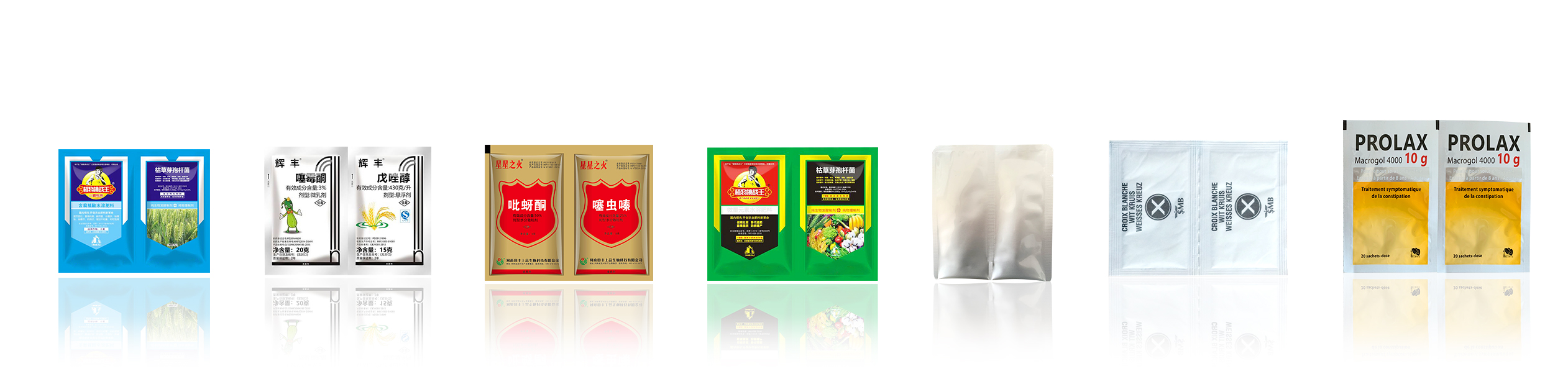

Some customer samples
