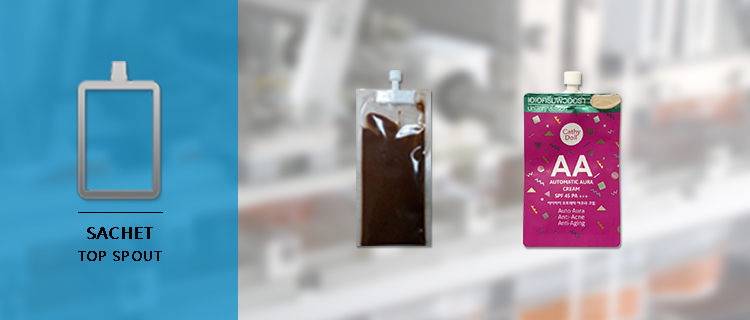

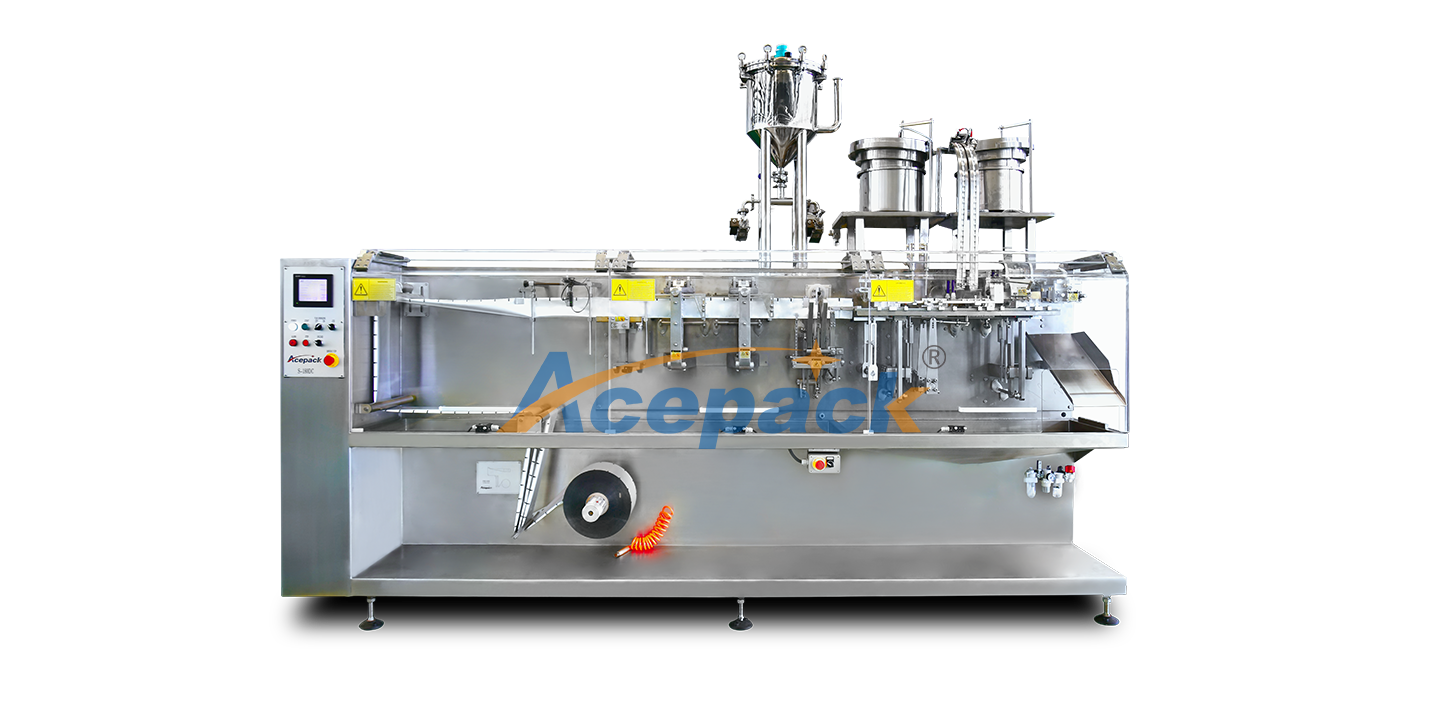

Top spout Flat sachet Filling Machine


       Top spout Flat sachet Filling Machine is designed for small bags and middle bags packaging. It has double-station blanking, two vibrating discs at the same time adding spouts to seal and form, and is widely used in liquid packaging types.


Product parameters




Model: S-180C


Maximum Filling Capacity:400ML



Pouch Size:

180mm*225mm(Max.); 50mm*80mm(Min)


Packing Speed: 40-80ppm;


Air Consumption:250NL/min


Working Power Supply: AC 380V 50Hz, 5.5KW


Machine Dimensions and Weight:

3180*970*1500mm; 1270KG


Model: S-180DC


Maximum Filling Capacity:100ML



Pouch Size:

90mm*180mm(Max.); 50mm*80mm(Min)


Packing Speed: 100-160ppm;


Air Consumption:400NL/min


Working Power Supply: AC 380V 50Hz, 4.5KW


Machine Dimensions and Weight:

3850*970*1500mm; 1270KG

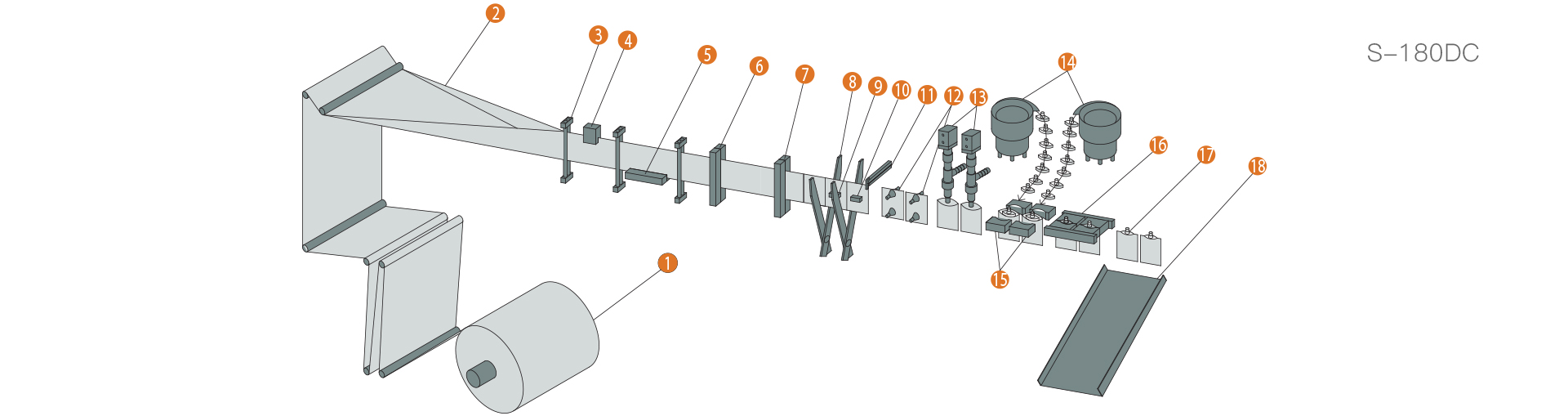

Process flow diagram




(1) Film Unwind(5)Bottom Seal
(9)Clip Pouch I
(13)Filling
(17)Finished Product
(2) Pouch Forming
(6)Vertical Seal
(10)Clip Pouch II
(14)Vibrator
(18)Output
(3) Film Guide(7)Vertical Cooling
(11)Pouch Pulling

(15)Spout Inserting


(4) Photocell(8)Cutting
(12)Pouch Opening
(16)Sealing

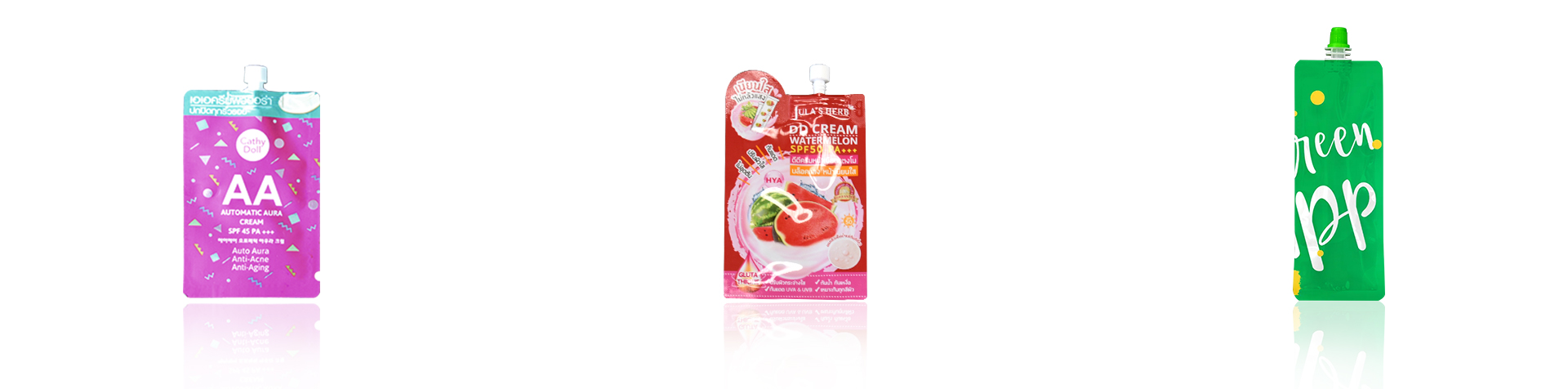

Some customer samples
