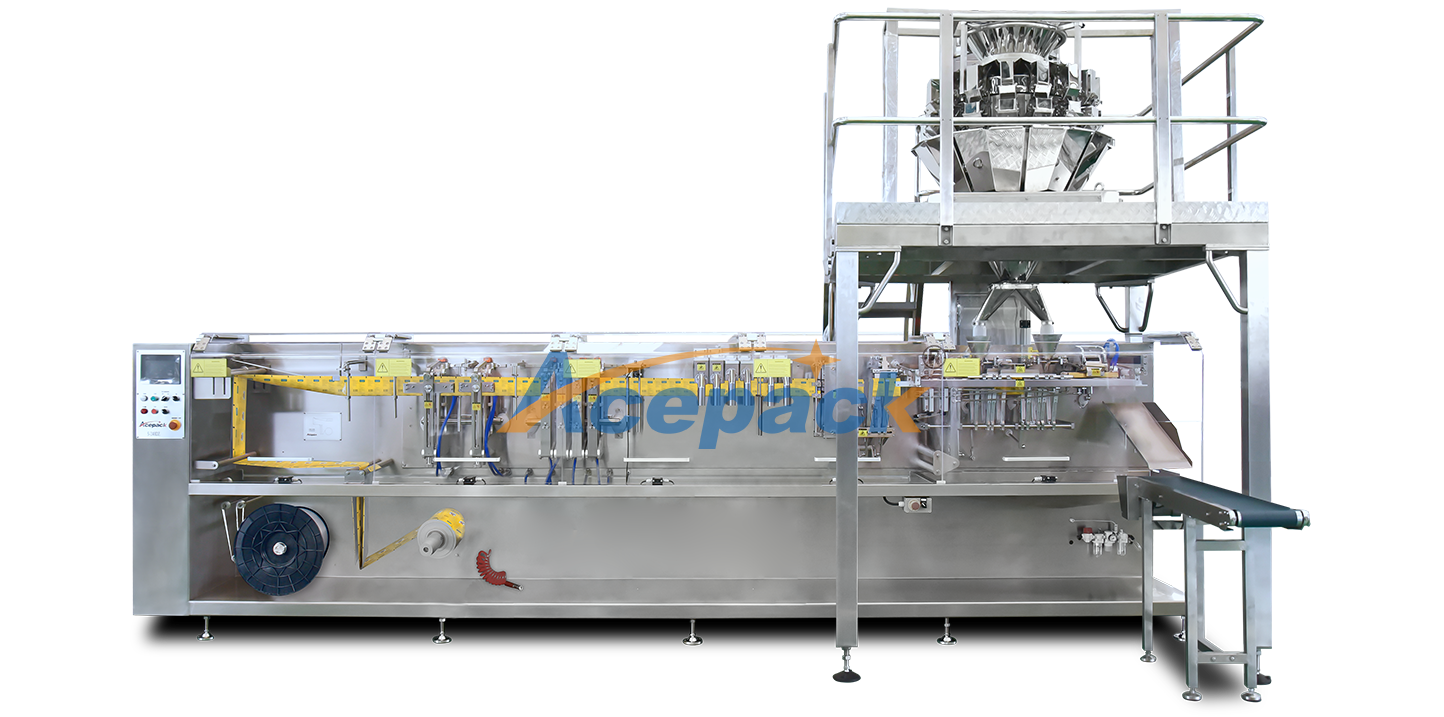

Zipper Flat Sachet Packaging Machine



       The zipper flat Sachet packaging machine series is specially designed for small bag and middle bag packaging. It has double-station blanking, and can be customized with functions such as hanging holes and zippers. It is suitable for a large number of canned packaging types such as granules and powders.


Product parameters




ModelS-180Z S-240Z
S-240DZ
Maximum Packing Volume400ml 1000ml
180ml
Max Pouch Size180mm*225mm 240mm*310mm

120mm*225mm

Min Pouch Size50mm*80mm 100mm*120mm
65mm*80mm
Packing Speed40-80ppm 30-60ppm
100-160ppm
Air Consumption200NL/min 300NL/min
200NL/min

Input Power

5.5kw 7.5kw
6.5Kw
Working Power SupplyAC 380V 50Hz
AC 380V 50Hz AC 380V 50Hz
Equipment Weight1600kg 2300kg 2000kg
L*W*H4660*970*1500mm 5400*970*1500mm 4590*970*1500mm

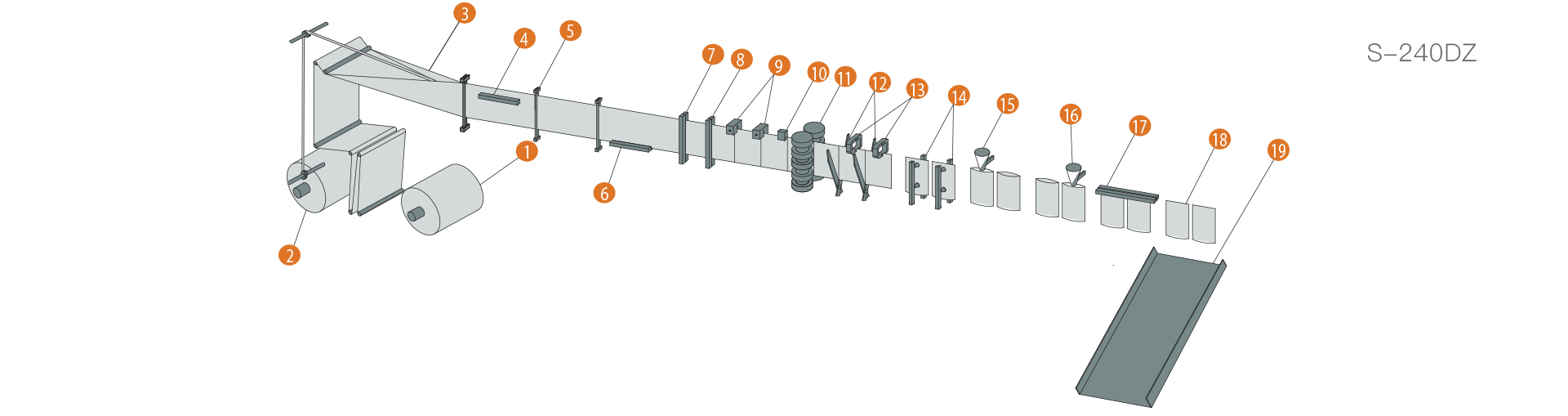

Process flow diagram




(1) Film Unwind(5) Film Guide
(9)Tear Notch
(13)Pouch Catching
(17)Heat Sealing

(2) Zipper Mechannism

(6)Bottom Seal
(10)Photocell
(14)Pouch Opening
(18)Finished Product
(3) Pouch Forming
(7)Vertical Seal I
(11)Servo Advance
(15)Filling I
(19)Output

(4) Zipper Seal

(8)Vertical Seal II

(12)Cutting

(16)Filling II


Some customer samples
