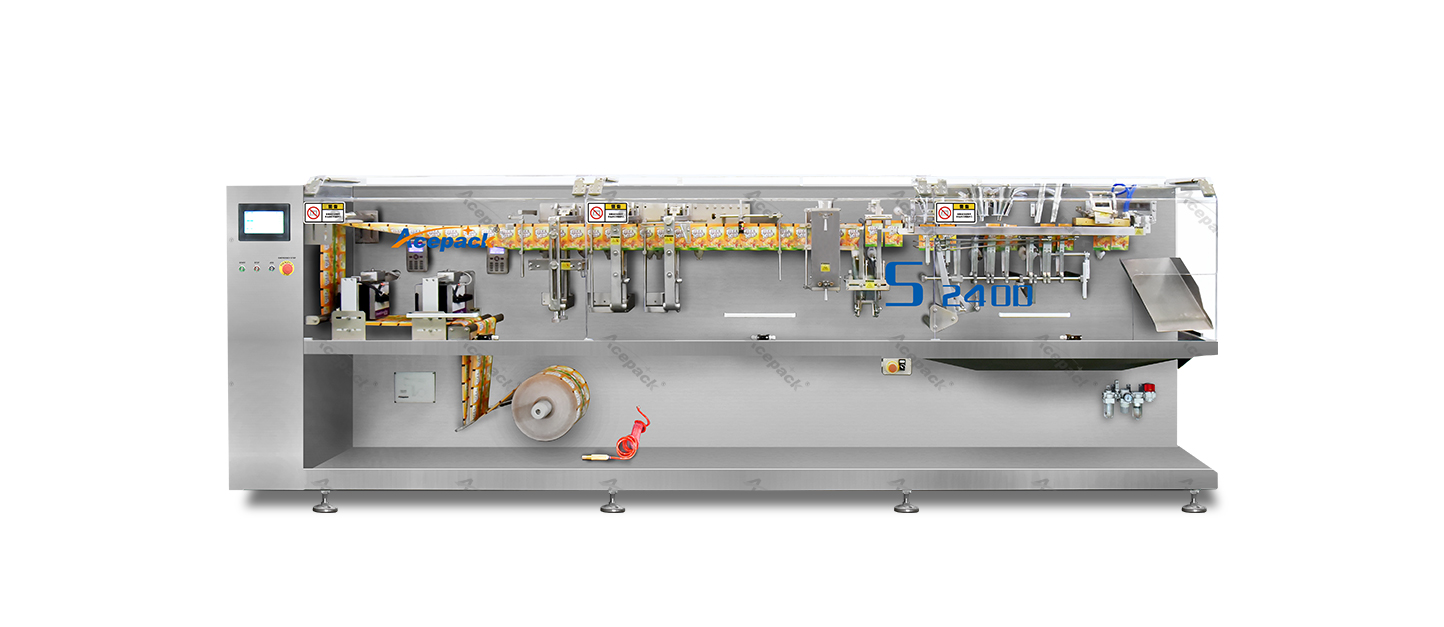

Standard Flat Sachet Packaging Filling Machine

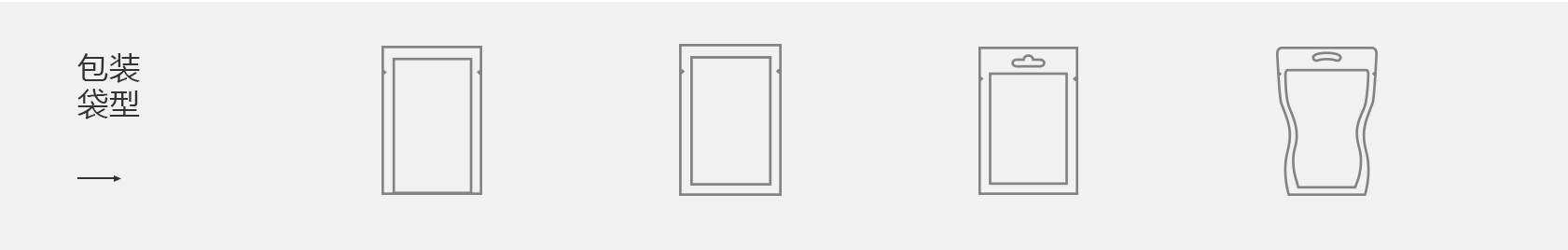

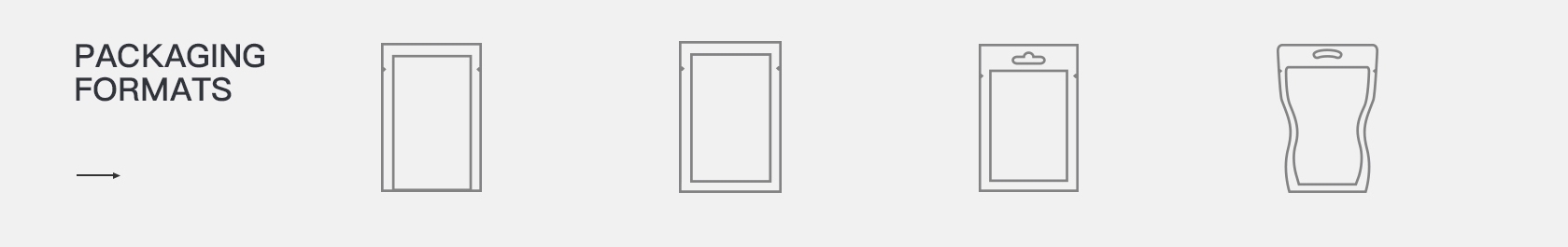

       It can adapt to various heat-sealing multi-layer composite films. It can automatically complete the process of pouch forming, bag making, loading and unloading and filling and packaging. It is an overall packaging solution for fast packaging of pouches. The series of pouch packaging models are specially designed for three-side sealing Or four-side sealed flat bag, formed by roll film, liquid or solid filling, hot top sealing. It can realize the packaging of standard three-side or four-side sealed flat bag, flat bag with zipper, flat bag with straight suction nozzle or diagonal suction nozzle automatic packaging.


Product parameters




ModelS-110 S-130 S-180S-180DS-240S-240DS-360D
Maximum Packing Volume60ml 260ml
 400ml 100ml1000ml180ml400ml
Max Pouch Size110mm*120mm 140mm*220mm

180mm*225mm

90mm*180mm
240mm*310mm
120mm*225mm
180mm*225mm
Min Pouch Size50mm*50mm 50mm*80mm
 50mm*80mm 50mm*80mm
100mm*120mm
65mm*80mm
65mm*80mm
Packing Speed40-80ppm 40-80ppm
 40-80ppm 120-160ppm
30-60ppm
100-160ppm
80-120ppm
Air Consumption0NL/min 100NL/min
 200NL/min 200NL/min
300NL/min
200NL/min
500NL/min

Input Power

2kw 3.5kw
 4.5kw 4.5kw
5.5kw
5.5kw
10.5kw
Working Power SupplyAC 380V 50Hz
 AC 380V 50Hz AC 380V 50Hz AC 380V 50Hz
AC 380V 50Hz
AC 380V 50Hz
AC 380V 50Hz
Equipment Weight520kg 900kg 1400kg 1500kg
2000kg
1800kg
2500kg
L*W*H2060*750*1400mm 2850*970*1500mm 3500*970*1500mm 3550*970*1500mm
4680*1000*1300mm
4290*970*1500mm
7070*970*1290mm

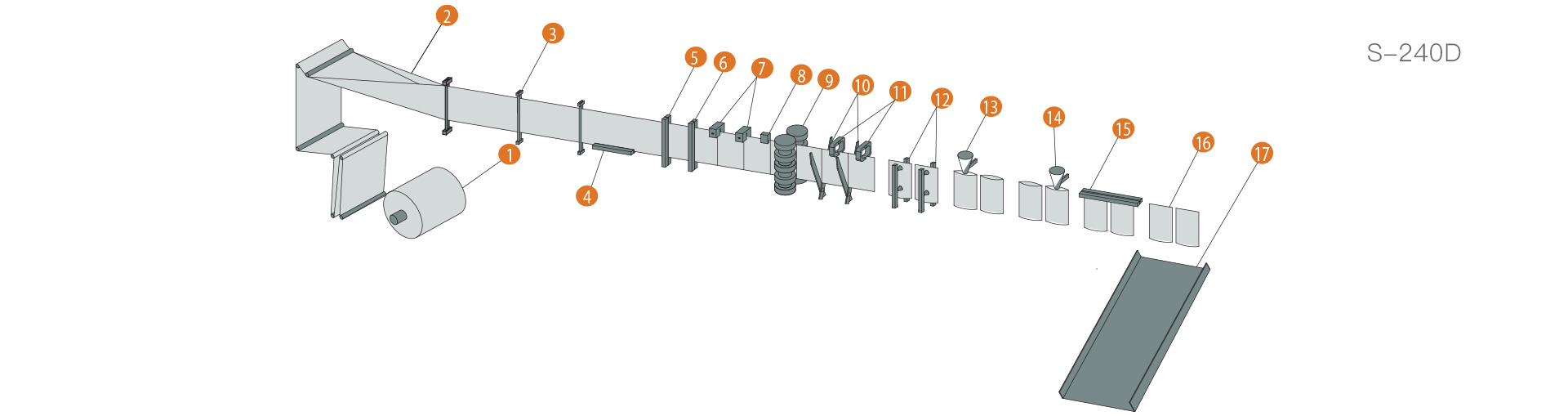

Process flow diagram



（1） Film Unwind（5）Vertical Seal I
 （9）Servo Advance
 （13）Filling I
（17）Output
（2） Pouch Forming
（6）Vertical Seal II
 （10）Cutting
 （14）Filling II
（3） Film Guide（7）Tear Notch
 （11）Pouch Catching

（15）Heat Sealing
（4）Bottom Seal（8）Photocell
 （12）Pouch Opening
 （16）Finished Product

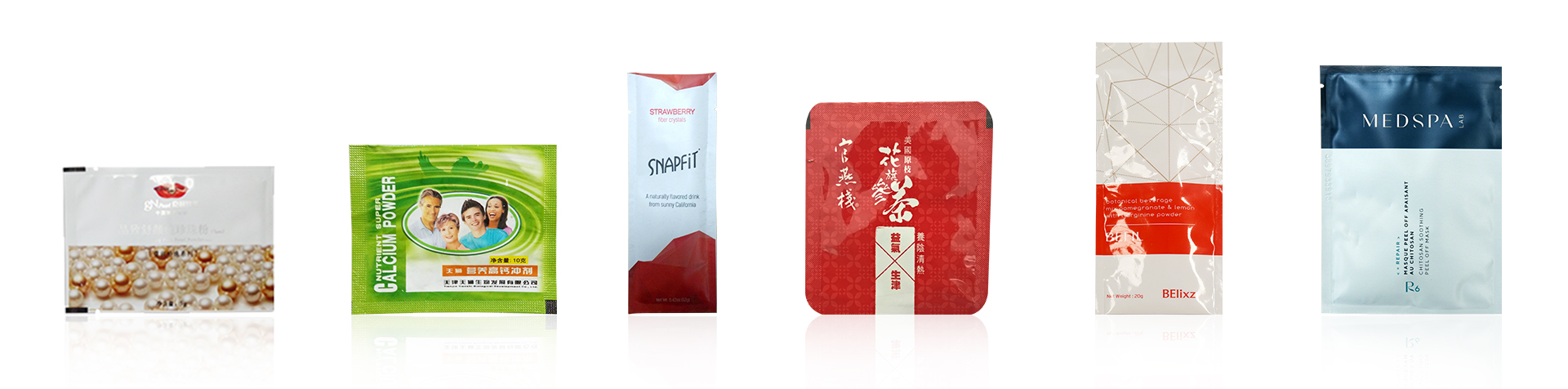

Some customer samples
