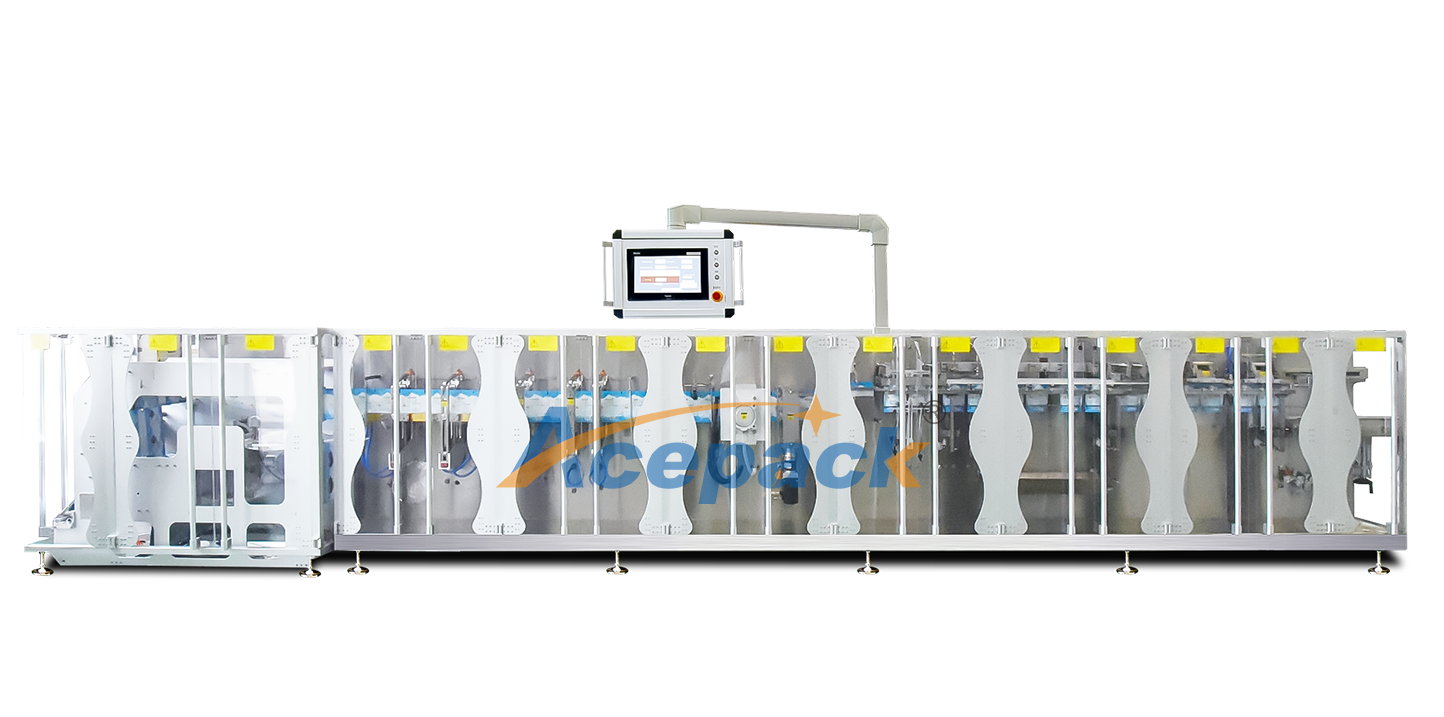

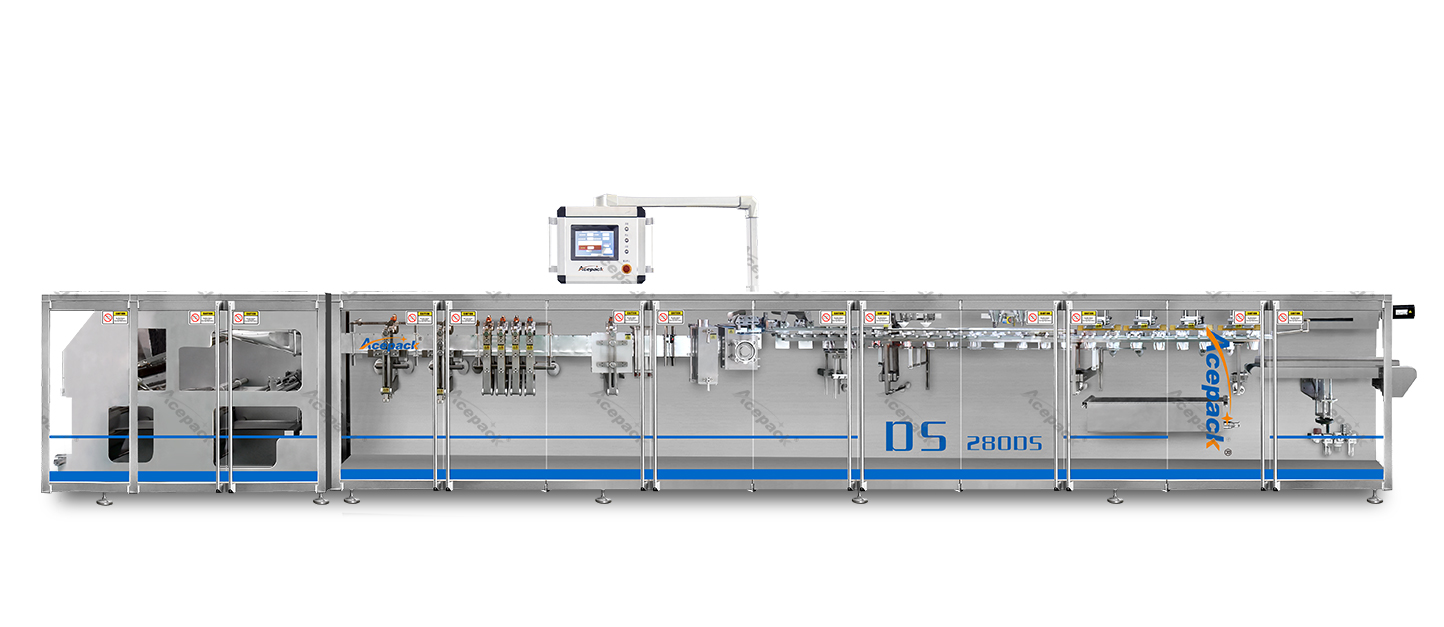

Standard doypack Pouch Packing Machine

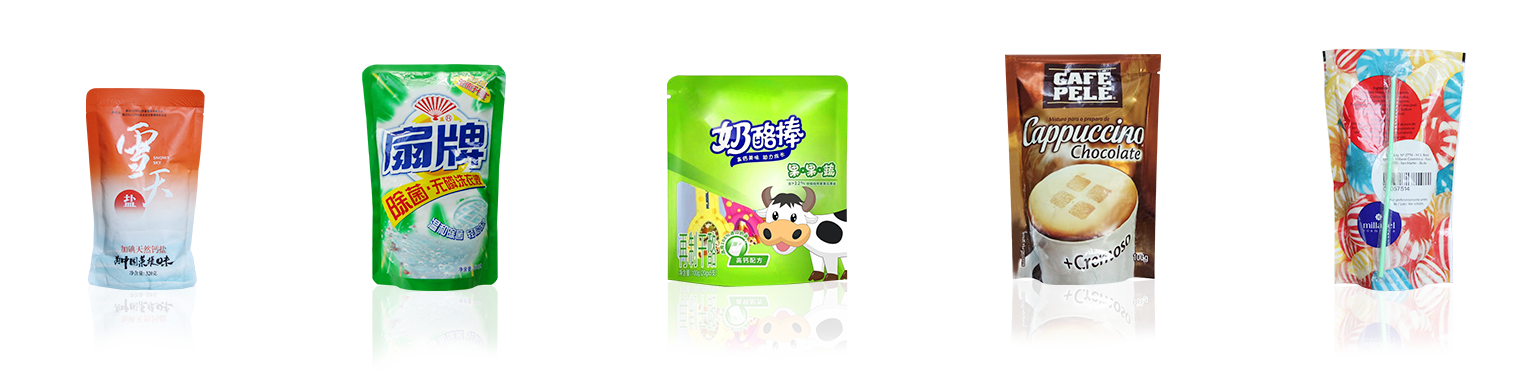

Usage: Food pouch packaging; nuts stand up pouches paking, candy pouches packing, coffee powder, liquid packing.
Features:
1. Horizontal Form Fill Seal machine.
2. Specially designed for the needs of stand-up pouch packaging.
3. Can realize the fully automatic process of stand-up pouch forming, filling and sealing; equipped with different filling systems, powder, liquid or granule materials packing are avaliable.
4. HFFS doypack packing machine.
5. Fully automatic operation; Multi Function Packaging Machines.

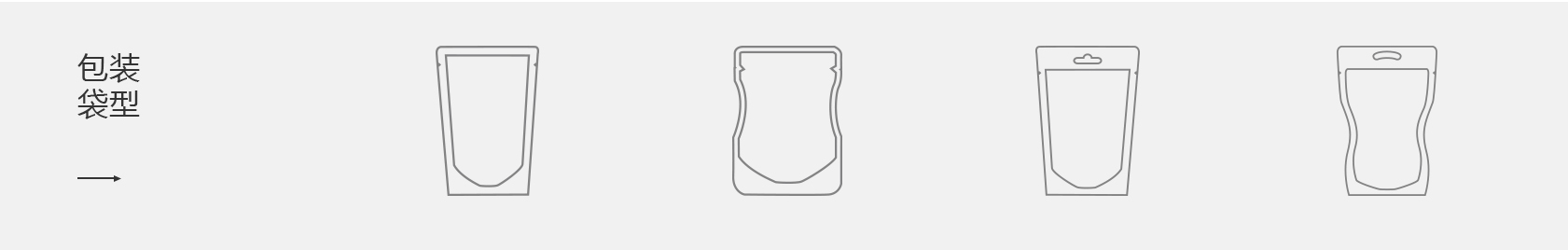

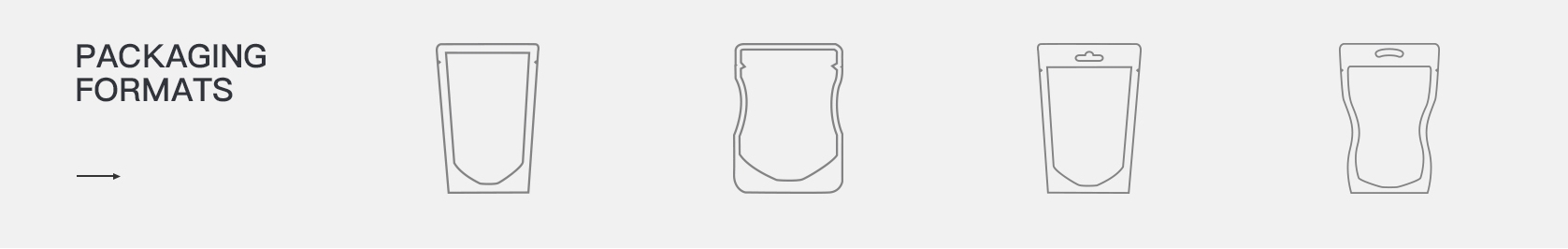

6. Adopted for stand-up pouches, special-shaped sachets, spouted stand up pouches; zipper pouches and hanging holes.
Product parameters
Model | DS-140S | DS-180S |
DS-240S | DS-280DS | DS-360DS |
Maximum Packing Volume | 300ml | 1200ml |
2000ml | 800ml | 1200ml |
Max Pouch Size | 140mm*200mm | 180mm*260mm |
240mm*350mm | 140mm*260mm | 180mm*260mm |
Min Pouch Size | 60mm*90mm | 90mm*110mm |
100mm*120mm | 90mm*110mm | 90mm*110mm |
Packing Speed | 40-60ppm | 40-60ppm |
30-60ppm | 80-120ppm | 80-120ppm |
Air Consumption | 200NL/min | 200NL/min |
300NL/min | 700NL/min | 500NL/min |
Input Power | 6.5kw | 6.5kw |
8kw | 10kw | 10.5kw |
Working Power Supply | AC 380V 50Hz |
AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz | AC 380V 50Hz |
Equipment Weight | 1600kg | 2000kg | 2600kg | 4000kg | 4500kg |
L*W*H | 4480*970*1400mm | 5550*1100*1400mm | 6900*1250*1400mm | 7400*1060*1400mm | 8700*1120*1400mm |

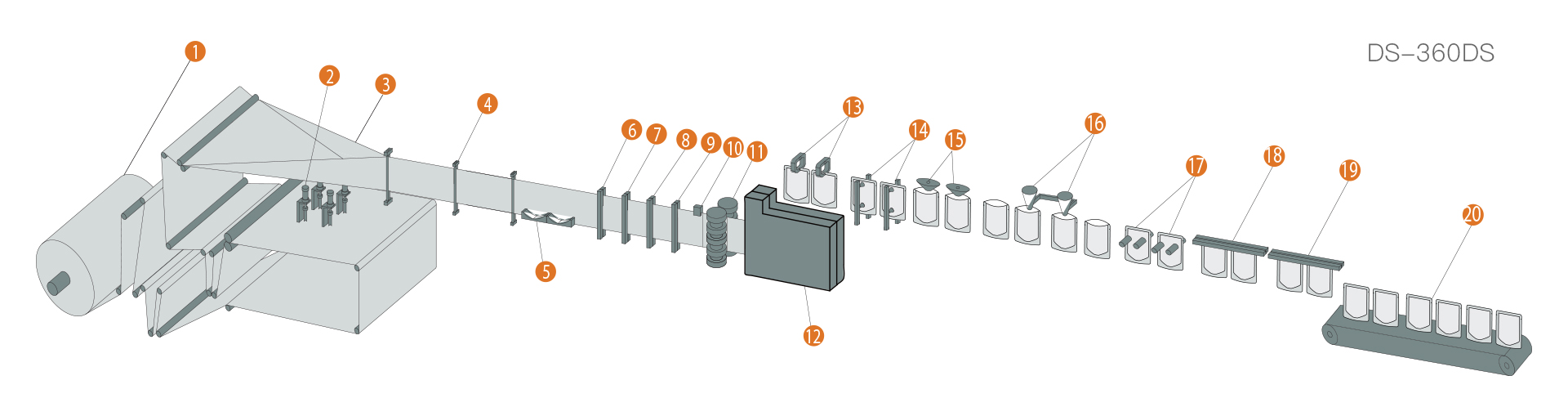

(1) Film Unwind | (5)Bottom Seal |
(9)Vertical Cooling II |
(13)Pouch Mechanism | (17)Pouch Stretching |
(2) Bottom Hole Punching | (6)Vertical Seal I |
(10)Photocell |
(14)Pouch Opening | (18)Heat Sealing |
(3) Pouch Forming | (7)Vertical Seal II |
(11)Servo Advance |
(15)Air Flushing | (19)Cool Sealing |
(4) Film Guide | (8)Vertical Cooling I |
(12)Form Punching |
(16)Filling | (20)Finished Product |
